OPEN CNC (Machining Status Monitoring Package) Operators manual Page 147

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 131 -
Explanation

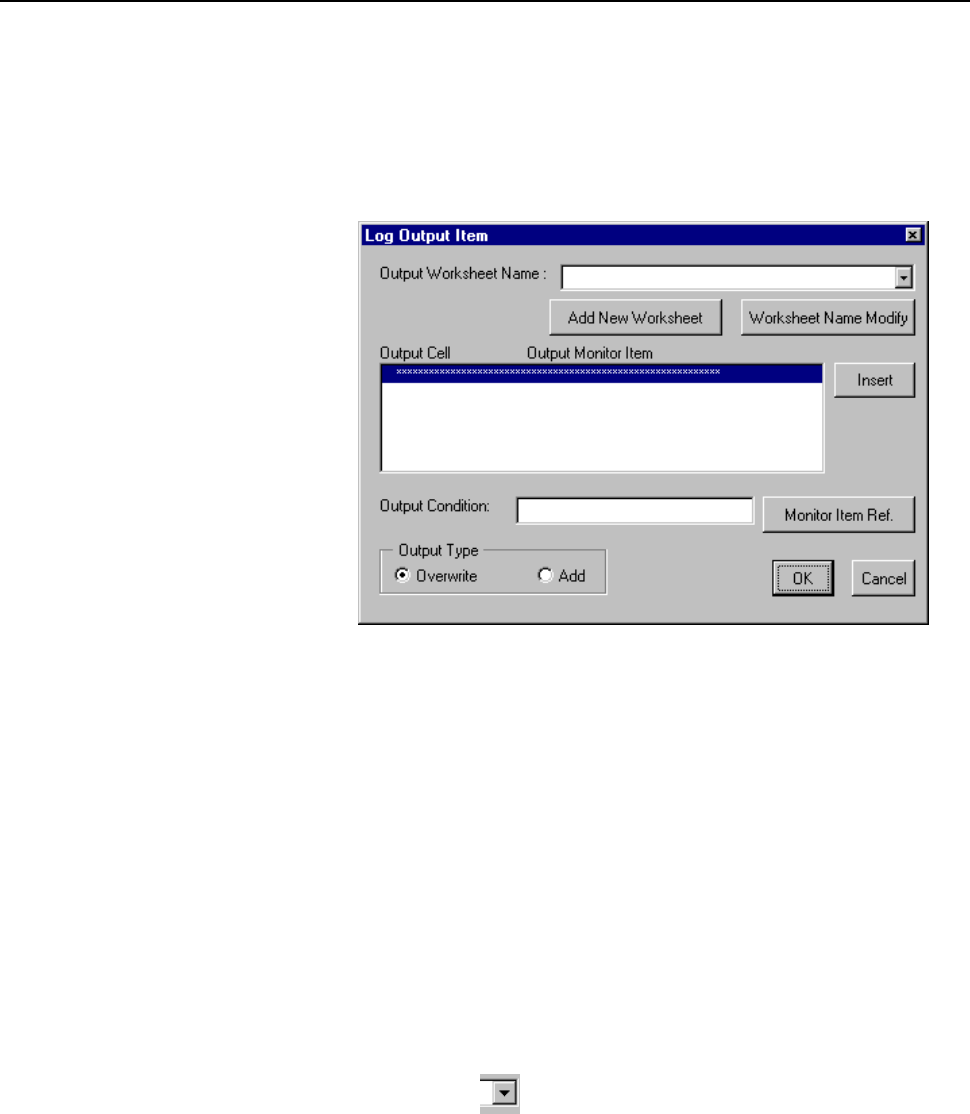

The functions of the [Log Output Item] screen and the operation on the
screen are explained below.
For details of the log output items, see Section 5.2.1, "Monitor Items and Log
Output Items."
Output Worksheet Name
Set the name of the worksheet to which log data is to be output. This field
provides the following functions:
• Selection of an existing worksheet
• Renaming of an existing worksheet
• Addition of a new worksheet
1) Selection of an existing worksheet
• Description
Allows the specification of a worksheet that has already been
registered in the Machining Status Monitor Package as a output
worksheet.
• Operation
Click
in the Output Worksheet Name field. From the
worksheet name list that appears, select the desired worksheet.
2) Renaming of an existing worksheet
• Description
When an output worksheet has been set, enables the renaming of the
worksheet.
The addition and deletion of worksheets due to the renaming of a
worksheet is carried out upon exiting from the monitor item and log
output item registration sheet.
