OPEN CNC (Machining Status Monitoring Package) Operators manual Page 58

Operators manual
3. REGISTERING CNC MACHINES TO BE MONITORED AND DELETING REGISTERED CNC MACHINES B-63364EN/03
- 42 -

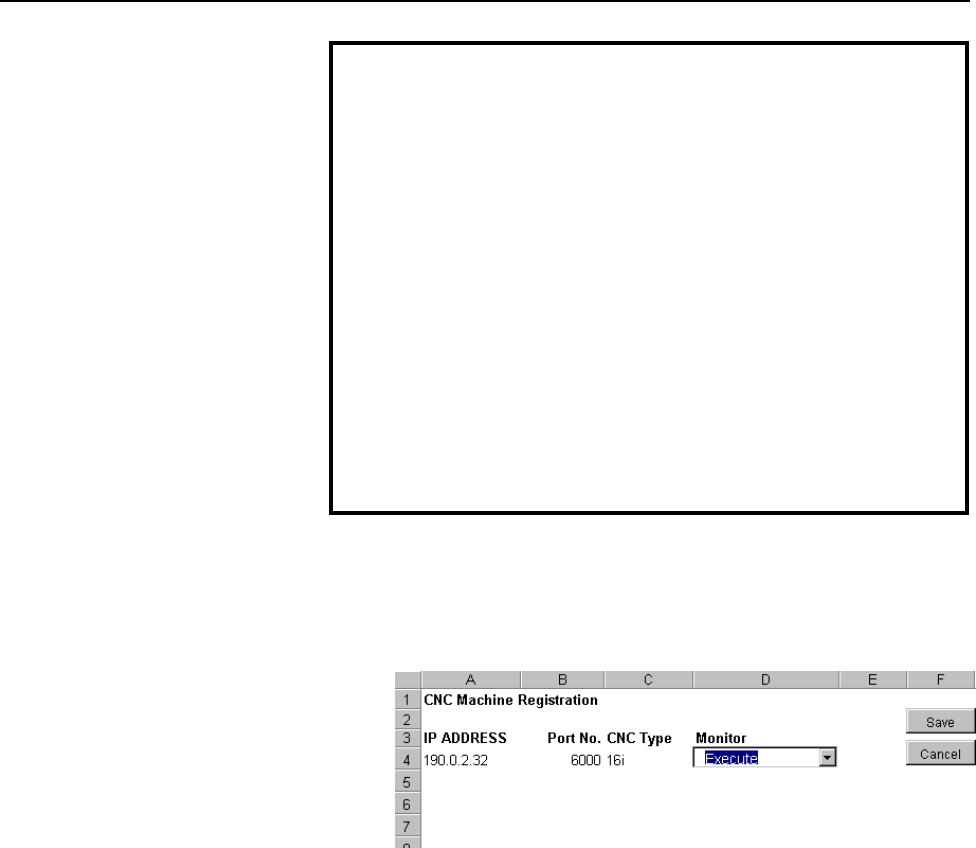

3. After selecting a CNC type, select the column of Monitor. The monitor
combo box appears. Select "Execute" or "Do Not Execute".
The <Save> and <Cancel> buttons appear.
4. Click the <Save> button.
The CNC machine is automatically registered as the CNC machine to be
monitored. For the CNC machine, parameter settings, monitor items,
log output items, and the machining program information registration
worksheet are created automatically.
In case that a “host name” is specified for the IP ADDRESS, if the host
name includes the character that is not accepted as the host name, the IP
ADDRESS in the Machining Status Monitor Package becomes "NC-*"
(*: Serial number).
When you don’t want to register the CNC machine, click <Cancel>
button. Input items will be discarded.
NOTE
When you assign the CNC machine by the “host name” at IP
ADDDRESS, use the following characters for the “host name”:
• Alphabet, A ... Z
•Numerical number, 0 ... 9
•Hyphen
If the “host name” has the other characters than listed above, the IP
ADDRESS in the Machining Status Monitor Package will be "NC-*" (*:
Serial number).
A unique host name and IP address must be specified to each CNC
machine.
When you set the CNC type, select the correct CNC type according
the CNC machine to be connected. If CNC type is different from the
connected CNC type, the CNC machine registration must be deleted
and registered again.
