OPEN CNC (Machining Status Monitoring Package) Operators manual Page 129

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 113 -

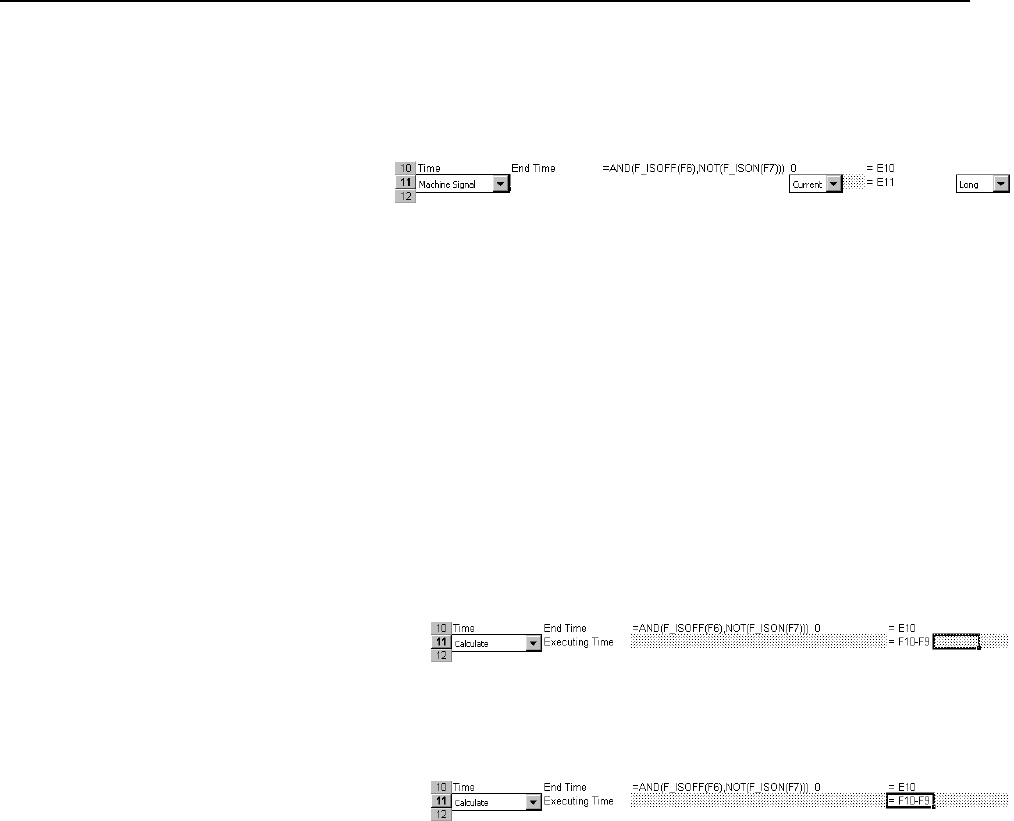

Double-click the area of cell A11.
The lists assisting in registration appear on row 11.
Select the item type "Calculate" and enter "Executing Time" for the item
name.
Set the output value and the output value display format as follows:
• Output Value
The execution time is equal to the end time minus the start time.
Because the end time is monitored in cell F10 and the start time is
monitored in cell F9, the formula is as follows:
=F10-F9
Enter the above formula in cell F11.
Change the display format of the output value to time. Follow the
steps below:
1) Select cell F11.
2) Choose the Format command from the MS Excel menu bar to
set the display format for cell F11.
Choose [Format], then the [Cell...] command. The following
screen appears.
