5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 92 -
Instead, when the value by a factor of 10 over the acquisition value
should be output, set the following calculation formula.
= E6*10
Refer to the manual and help of MS Excel for details of the format
of the calculation formula of MS Excel.
• Display form
The display format of the cell where this "Output value" is output as
the logging data is specified using the formatting function of MS
Excel.
Refer to "5.2.2 Example of Registering and Changing Monitor Items
and Log Output Items" for setting method of the display format.
Refer to the manual and help of MS Excel for details of the display
format of MS Excel.

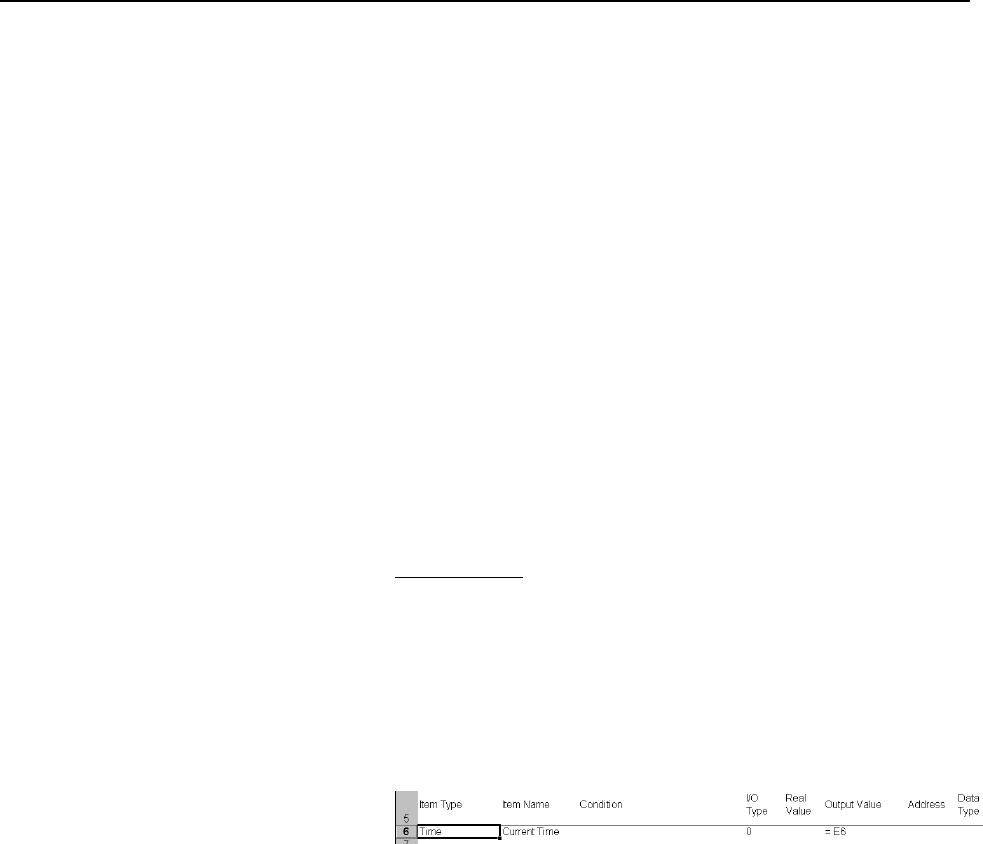

Setting example
The setting example for monitoring the following data from the
personal computer is illustrated below.
Monitor data : Current time
Condition : None (Acquire at sampling intervals)
I/O type : Current value
Output value : = Real value
(4) Week
The current day of the week is acquired from the personal computer.
Item name
Set the name by which the character of this monitoring item is shown.
The item name becomes the key word for referring to the output item
on the registration auxiliary screen of the logging output item.
Condition
Set the condition formula to acquire the monitoring data of this
monitoring item from the CNC machine. When the condition is set,
the data acquisition is executed if the condition formula is satisfied
(=TRUE).
When the condition is not set, the data acquisition is executed at every
sampling interval of that CNC machine.
