OPEN CNC (Machining Status Monitoring Package) Operators manual Page 74

Operators manual
4. SETTING THE GENERAL PARAMETERS FOR THE MACHINING STATUS MONITOR PACKAGE B-63364EN/03
- 58 -
4.1.2 Setting Monitor and Log Items to Be Referenced for CNC Machine
Registration
When a CNC machine that has been deleted is reregistered, a monitor and log
registration sheet is created for the reregistered CNC machine. To this sheet,
the data on an existing sheet is copied as the default data. You can set a CNC
machine number as the reference source of the default data .
This setting is available only for the HSSB version.
Procedure

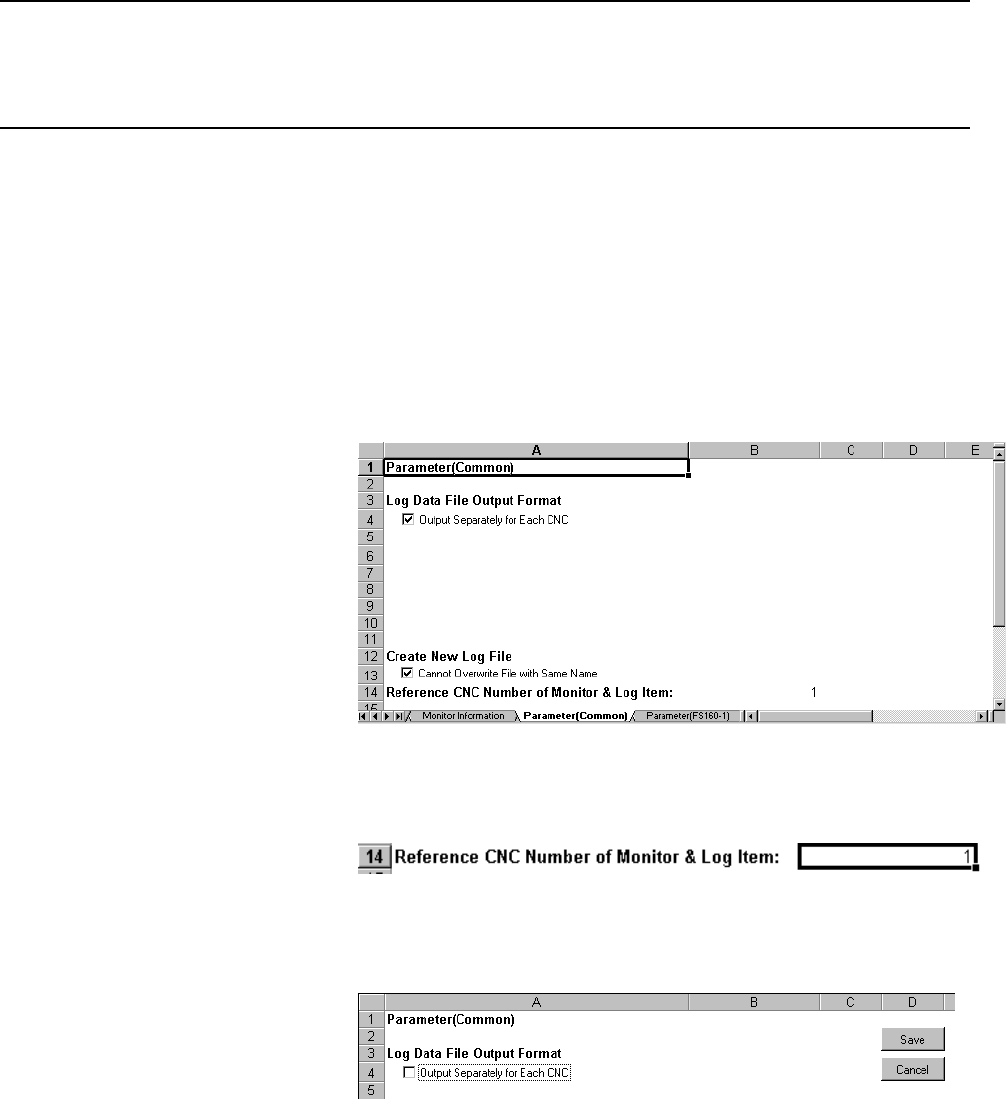

1. Select the [Parameter(Common)] worksheet.
2. In the cell on the "Reference CNC Number of Monitor & Log Item:" line,
set the CNC machine number to be referenced.
For details of the CNC machine numbers, see the Explanation below.
When the number is changed, the <Save> and <Cancel> buttons appear.
3. Click the <Save> button.
The change is executed, then the <Save> and <Cancel> buttons
disappear.
