B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 67 -
5.1.3 Setting Log Data Output File Data for Each CNC Machine
If multiple CNC machines are monitored simultaneously to output log data, the
following log data output methods can be specified:
1) Output log data for all the CNC machines to a single log data output file
2) Output log data for each CNC machine to a separate log data output file
for that CNC machine
For the parameter setting in this section, the following data is set:
• Output style when a new month begins, automatic saving interval, output
file name, output folder name, and so on, for the log output file of the CNC
machine in case that the log data is set to be output to a separate file.
Procedure

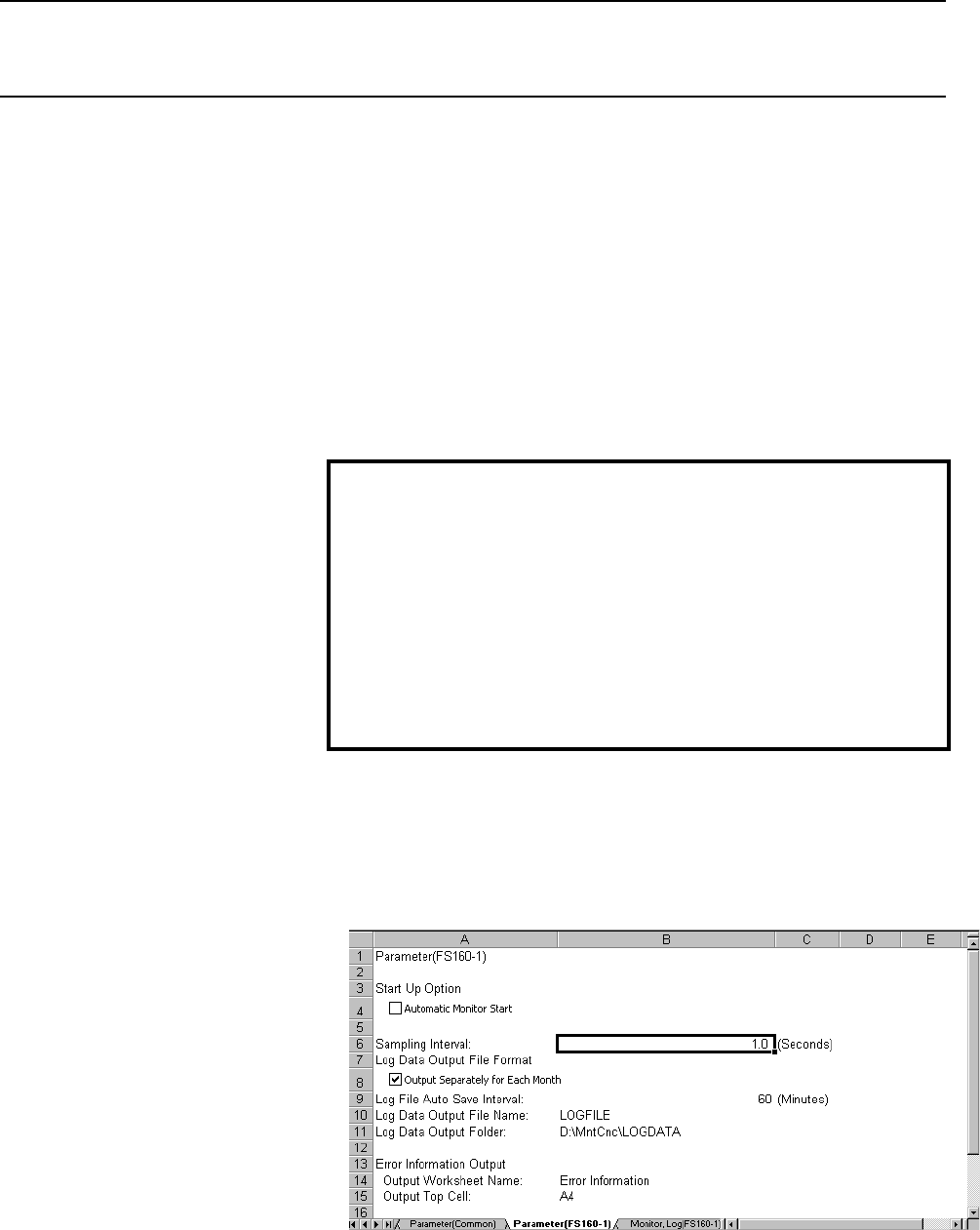

1. Select the [Parameter(FS160-1)] worksheet.
(This worksheet is for setting parameters for a CNC machine with the name
"FS160-1.")
2. Set the following parameters: "Log Data File Output Format," "Log
Data Output File Name:," and "Log Data Output Folder:."
For details of the data to be specified, see the explanation below.
NOTE
These parameters are effective only when the general parameters for
the Machining Status Monitor Package are set so that log data for each
CNC machine is output to a separate file. When the parameters are set
so that log data for all CNC machines is output to a single file, these
parameters are not displayed.
For an explanation of setting the parameters so that log data for all CNC
machines is output to a single file, see Section 4.1.1, "Setting Data for
Log Data Output Files."
