OPEN CNC (Machining Status Monitoring Package) Operators manual Page 150

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 134 -
From the output item name list, select the item to be output as log data.
Set the destination of the log data.
Click the <OK> button.
2) Modification of output monitor items and destination cell data
• Description
Allows the modification of existing output monitor items and
destination cell data.
• Operation
From the list, select the output monitor item and destination cell data
to be changed. If multiple list items are selected, the list item
selected first will be changed.
Click the <Modify> button.

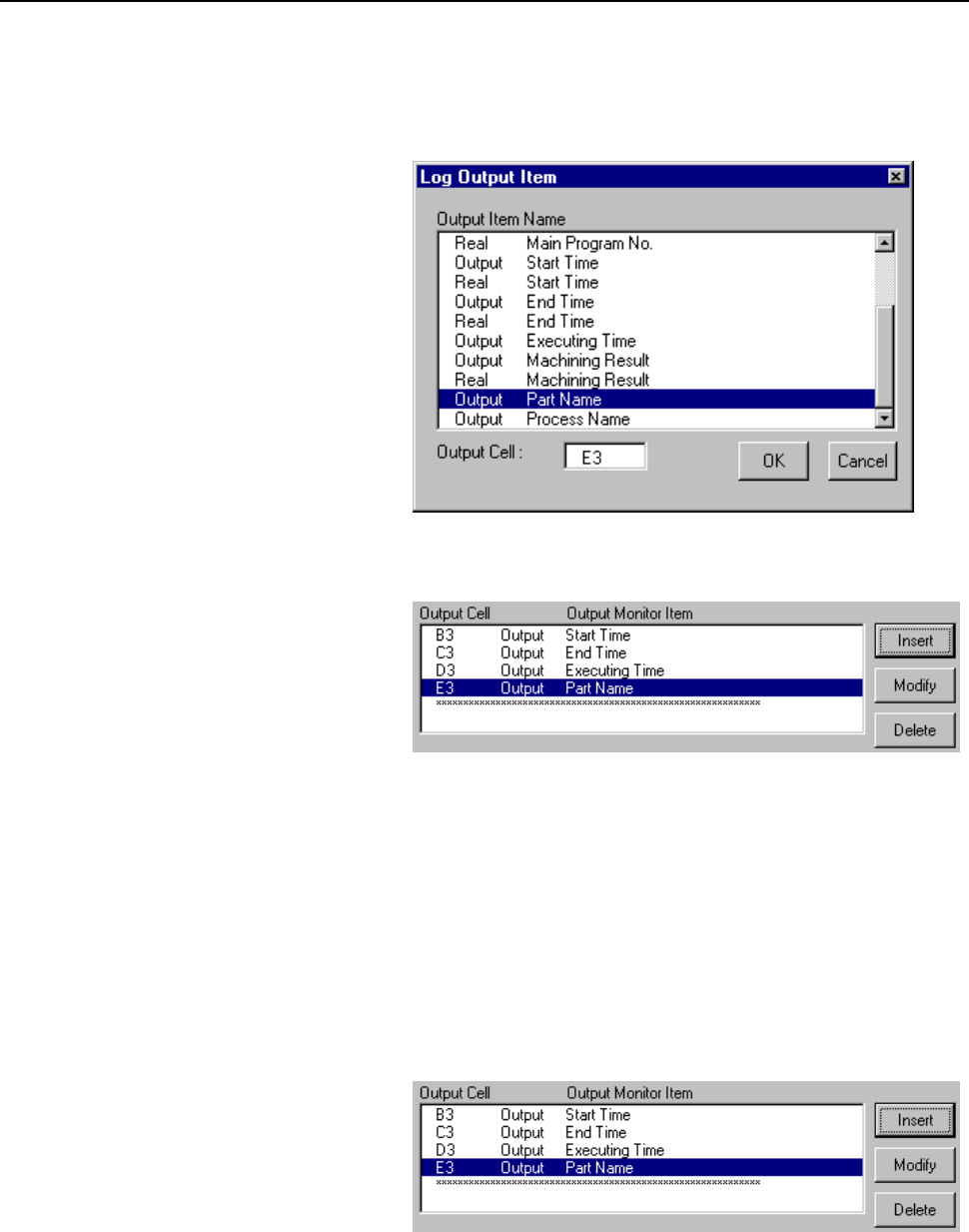

The [Log Output Item] screen appears. The output item name list
shows the names of the monitor data items registered as monitor items
on the worksheet.
