OPEN CNC (Machining Status Monitoring Package) Operators manual Page 91

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 75 -
5.2 REGISTERING TARGET ITEMS FOR MONITORING AND LOG
DATA OUTPUT
This section explains how to register monitor items and log output items.
For each CNC machine, a worksheet for registering monitor items and log
output items is provided. The worksheet name is as follows:
Worksheet name: "Monitor, Log(" + CNC Machine Name + ")"
For example, for the CNC machine name "FS160-1," the worksheet name is:
Worksheet name: "Monitor, Log(FS160-1)"
The following explanation assumes the CNC machine name to be "FS160-1."
Procedure
1. Select the [Monitor, Log(FS160-1)] worksheet.
The [Monitor, Log(FS160-1)] worksheet appears.
NOTE
Monitor items and log output items can be registered for a CNC
machine only when the monitor for the CNC machine is stopped.

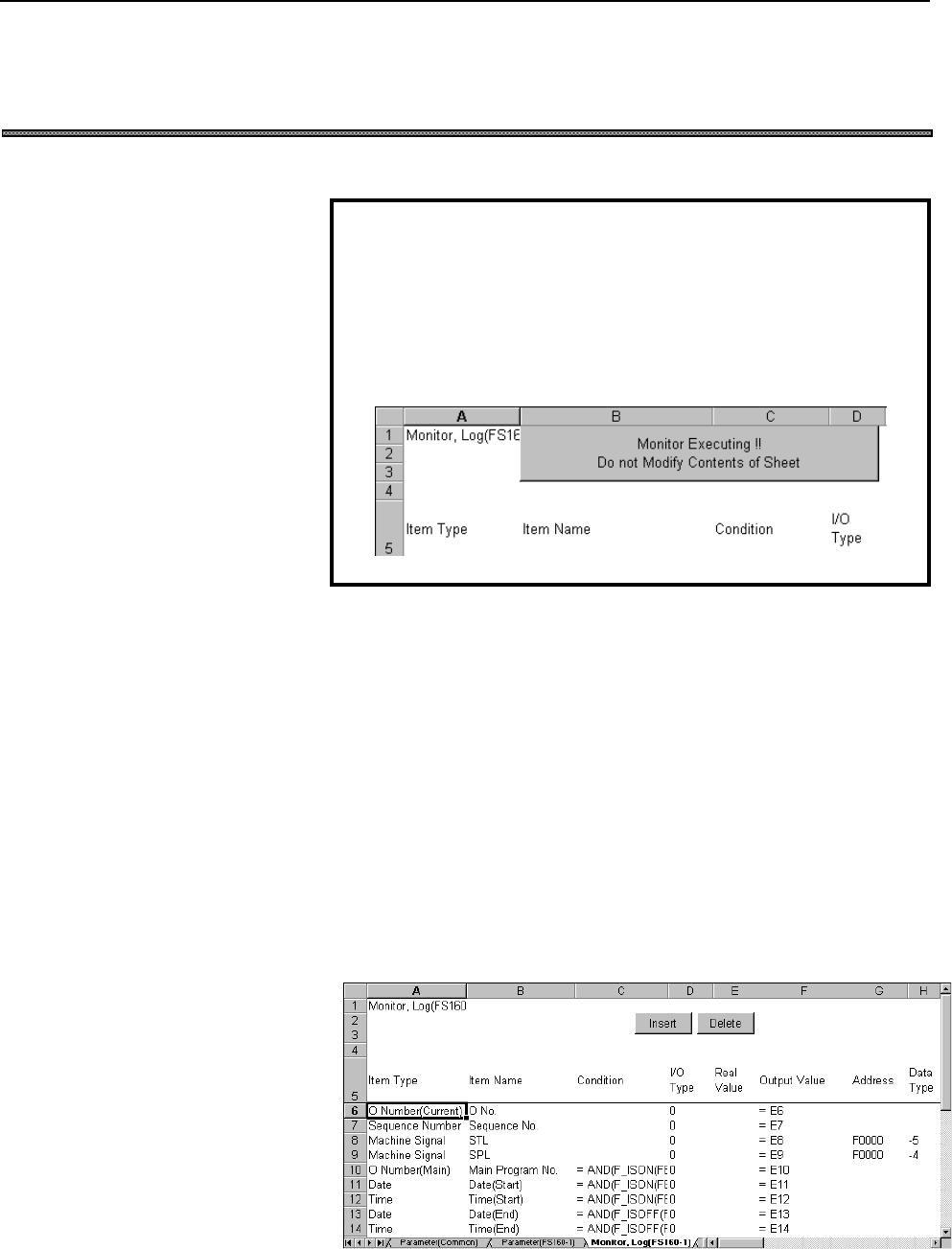

While the CNC machine is being monitored, the following message
appears on the worksheet. At this time, do not change the value of any
cell on the worksheet.
