OPEN CNC (Machining Status Monitoring Package) Operators manual Page 78

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 62 -

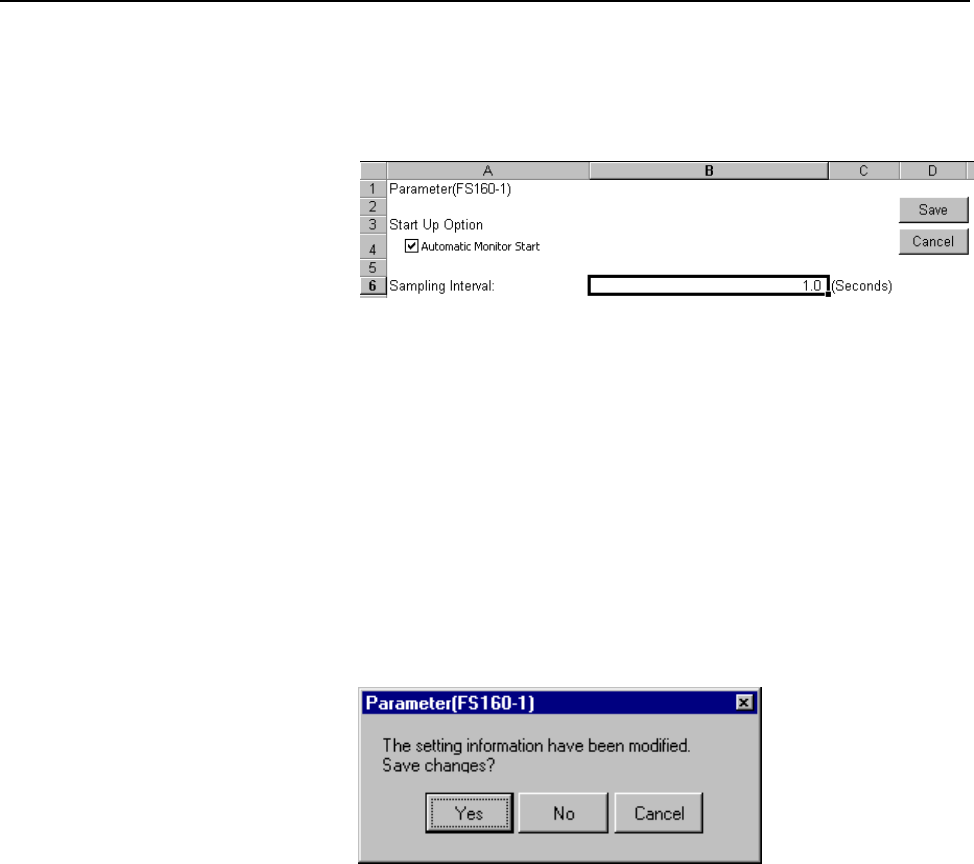

2. Change the values in the checkbox and cells for the parameters to be
changed.
The <Save> and <Cancel> buttons appear.
3. To apply the changes, click the <Save> button.
Otherwise, click the <Cancel> button.
If the setting of "Output Worksheet Name:" under "Error Information
Output" is changed, worksheets may be added and deleted when another
worksheet is selected.
For details of setting the parameters under "Error Information Output," see
Section 5.1.4, "Setting the Destination of Error Occurrence Information."
If another worksheet is selected after parameters have been changed, the
following message appears:
To apply the changes, click the <Yes> button.
Otherwise, click the <No> button.
To return to the [Parameter(FS160-1)] worksheet, click the <Cancel> button.
Explanation
For details of the parameters, see the description below.
