OPEN CNC (Machining Status Monitoring Package) Operators manual Page 52

Operators manual
3. REGISTERING CNC MACHINES TO BE MONITORED AND DELETING REGISTERED CNC MACHINES B-63364EN/03
- 36 -

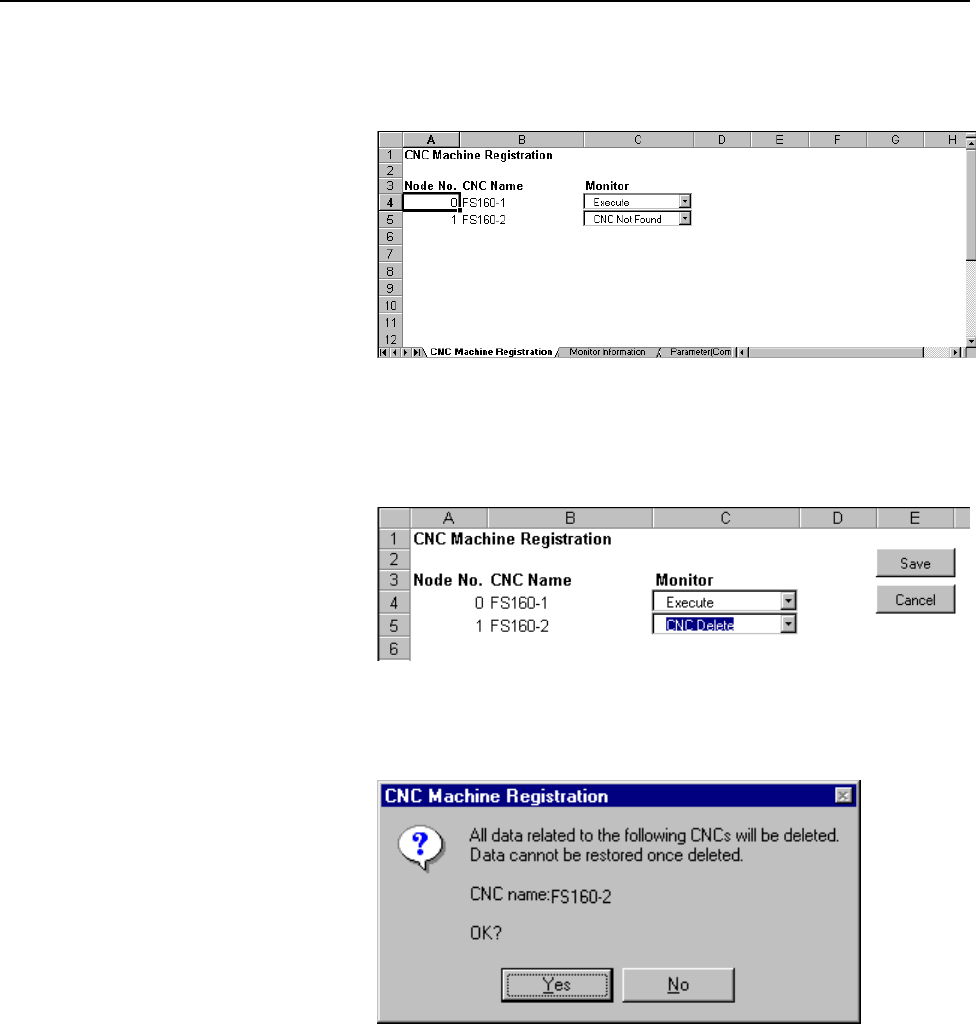

Deleting a CNC machine for which "CNC Not Found" is indicated
1. Select the [CNC Machine Registration] worksheet.
2. Change the setting of the monitor combo box from "CNC Not Found"
to "CNC Delete."
The <Save> and <Cancel> buttons appear.
3. Click the <Save> button.
The confirmation message below appears.
4. Click the <Yes> button.
Then, click the <OK> button for all the displayed messages.
The node number, CNC machine name, and monitor combo box
setting of the CNC machine are deleted from the [CNC Machine
Registration] worksheet.
The <Save> and <Cancel> buttons disappear, indicating the
completion of CNC machine deletion.
