6. MONITORING CNC MACHINES AND OUTPUTTING LOG DATA B-63364EN/03
- 158 -
6.3.1 Stopping the Monitoring of CNC Machines from the Machining
Status Monitor Package
Procedure

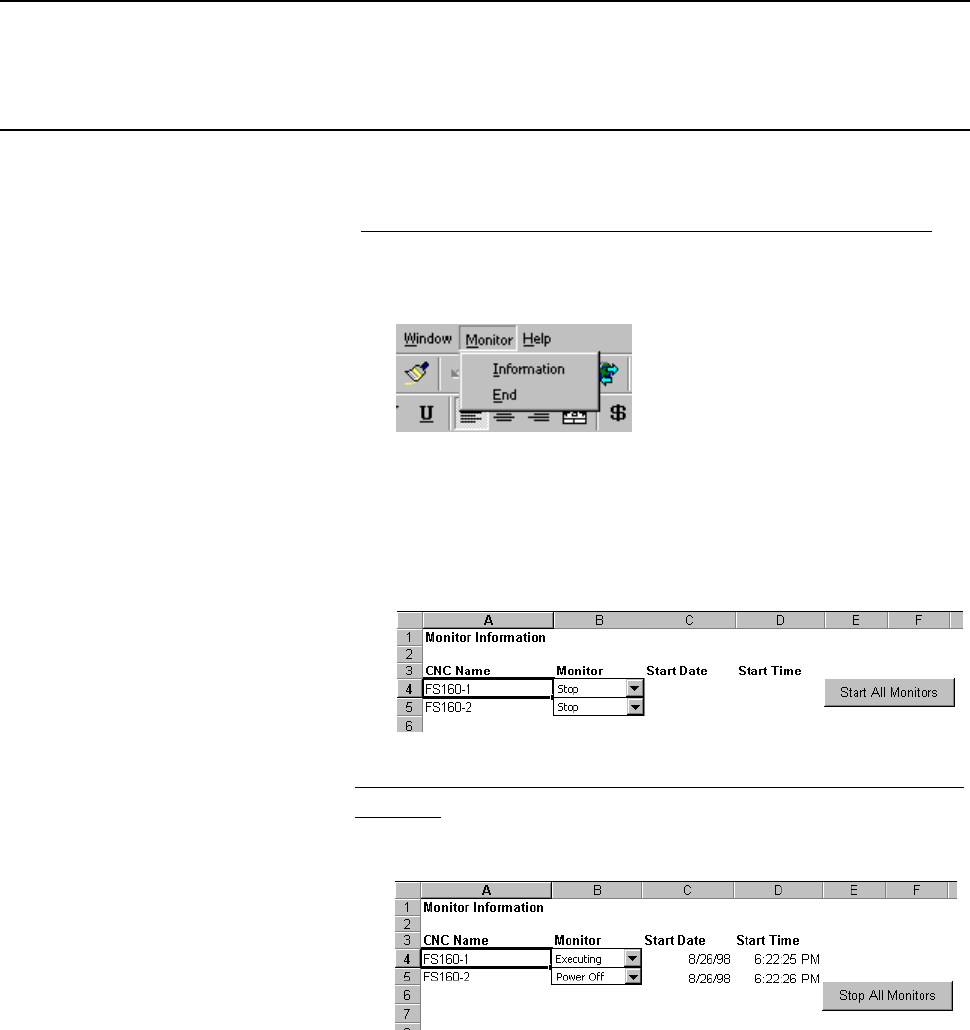

To stop the monitoring of CNC machines from the [Monitor] menu bar:
1. Choose [Monitor], then [End] of the Machining Status Monitor
Package.
The [Monitor Information] worksheet appears.
The monitoring of all the CNC machines currently being monitored
ends, and "Executing," displayed in the monitor combo box, changes to
"Stop."
To stop the monitoring of CNC machines from the [Monitor Information]
worksheet:
1. Choose the [Monitor Information] worksheet.
2. Change "Executing" or "Power Off," displayed in the CNC machine
monitor combo box, to "Stop."
To stop the monitoring of all CNC machines for which "Executing" or
"Power Off" is displayed, click the <Stop All Monitors> button.
The <Apply> button appears.
