OPEN CNC (Machining Status Monitoring Package) Operators manual Page 158

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 142 -
5.3 REGISTERING MACHINING PROGRAM INFORMATION
This section explains how to register machining program information for
outputting machining results.
For each CNC machine, a worksheet for registering machining program
information is provided. The worksheet name is as follows:
Worksheet name: "Program(" + CNC Machine Name + ")"
For example, for the CNC machine name "FS160-1," the worksheet name is:
Worksheet name: "Program(FS160-1)"
The following explanation assumes the CNC machine name to be "FS160-1."
Procedure

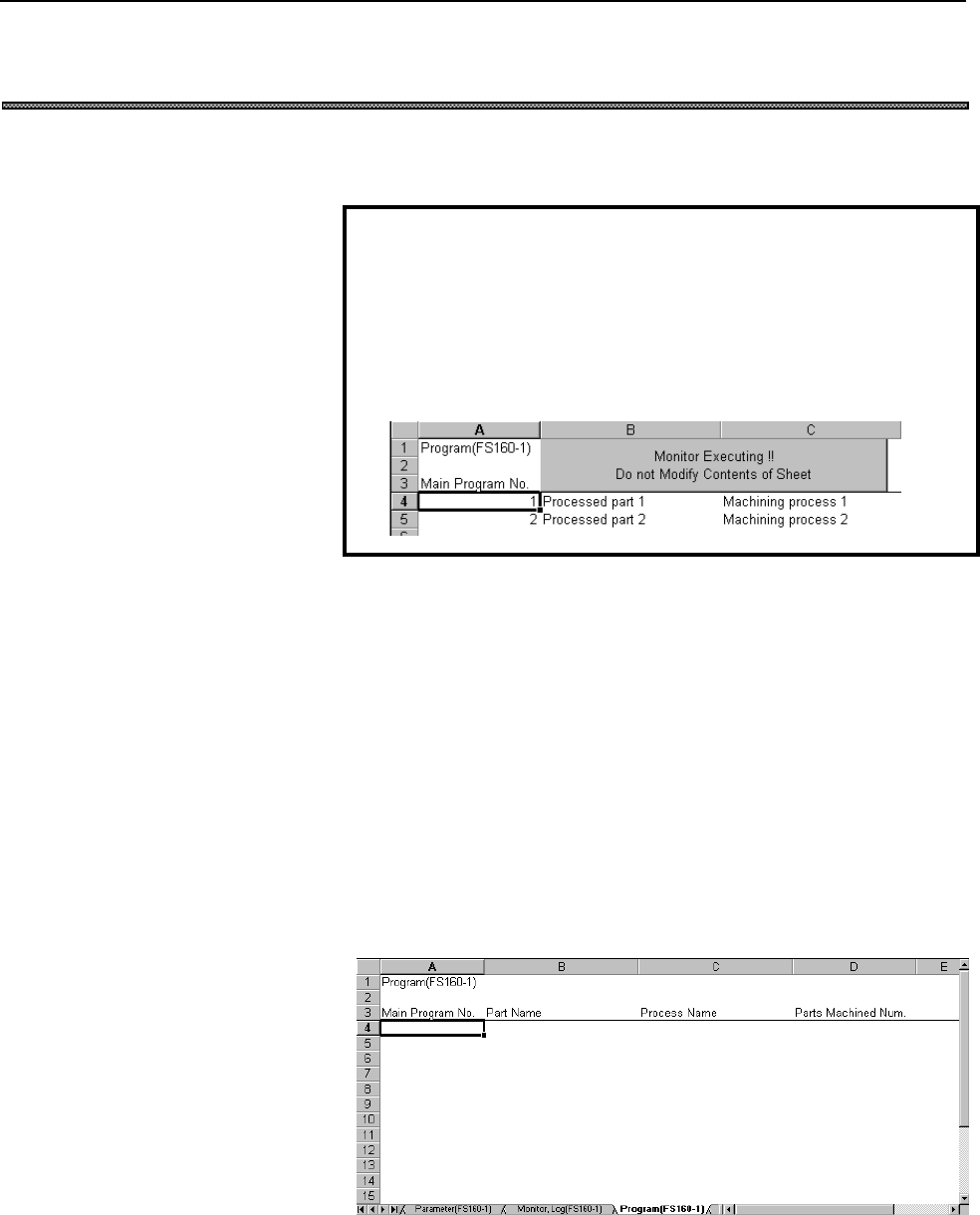

1. Select the [Program(FS160-1)] worksheet.
The [Program(FS160-1)] worksheet appears.
2. Register machining program information by setting the main program
number, the name of the part to be machined by the program specified
with the main program number, process name, and the number of parts to
be machined.
NOTE
Machining program information can be registered for each CNC machine
only when the monitor for that CNC machine is stopped.
While the CNC machine is being monitored, the following message
appears on the worksheet. At this time, do not change the value of any
cell on the worksheet.
