OPEN CNC (Machining Status Monitoring Package) Operators manual Page 161

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 145 -
The members which are used for the monitoring items and the logging
output items are as follows.
Member name Description
Main Program No. Main program number of NC program
specified for processing the part
Part Name Processed part name which is processed by
the "Main Program No."
Process Name Machining process name at which the part is
processed by the "Main Program No."
Parts Machined Num. Number of parts processed by the "Main
Program No."

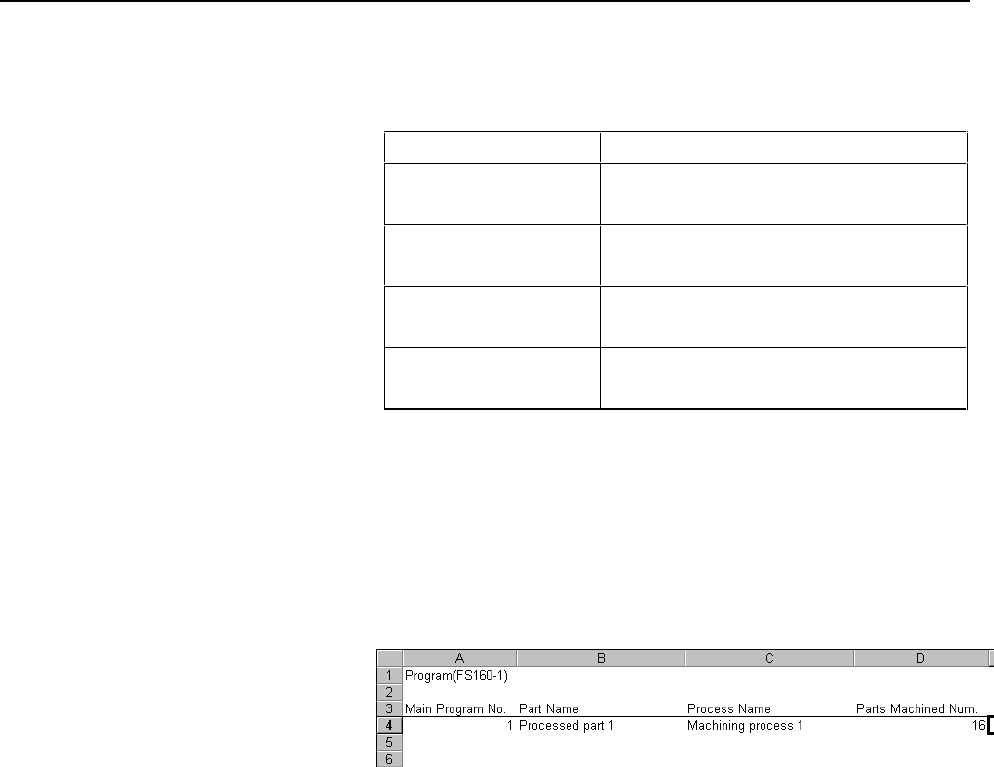

For instance, for the following machining program information, register as
the following form.
Main program number : O0001
Processed part name : Processed part 1
Machining process name : Machining process 1
Number of processed parts : 16 pieces
It is necessary to specify the main program number with the corresponding
the processed part name, the machining process name, and the number of
processed parts.
The Machining Status Monitor Package acquires the machining results
information corresponding the main program executed on the CNC
machine as the monitoring data.
It is not concerned the order of the machining program information.
