OPEN CNC (Machining Status Monitoring Package) Operators manual Page 125

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 109 -

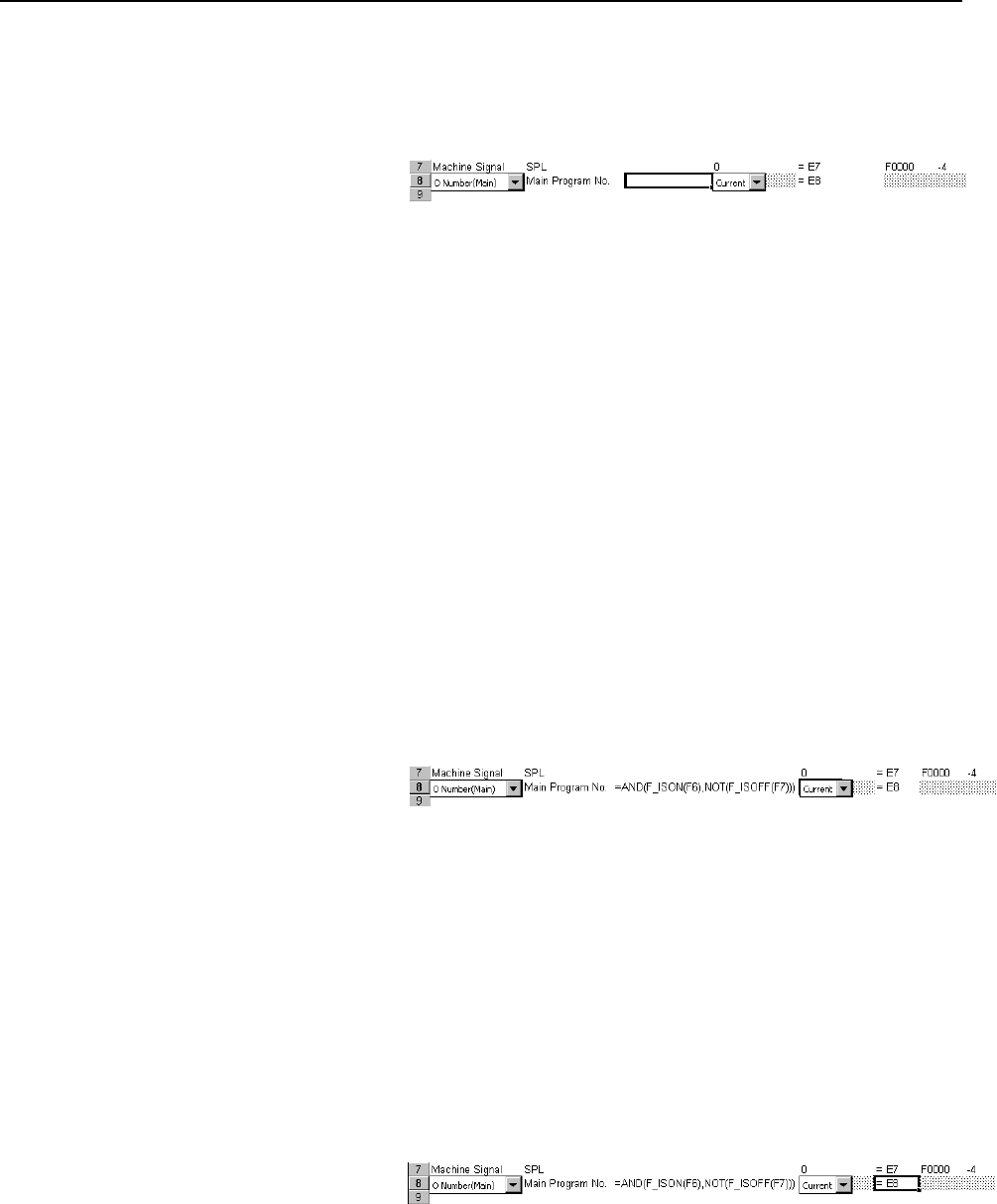

• Item Name
Enter "Main Program No." in cell B8.
• Condition
The program start condition with the monitor values of the STL and
SPL signals is described below. (For an explanation of the start
condition, see the figure under "Monitor items and log output items to
be registered," at the beginning of this section.)
Rising of the STL signal (0 → 1)
and
Other than the falling of the SPL signal (1 → 0)
This is translated into the following conditional expression because
the STL signal is monitored in cell F6 and the SPL signal is monitored
in cell F7.
= AND(F_ISON(F6),NOT(F_ISOFF(F7)))
Enter the above conditional expression in cell C8.
• I/O Type
No operation is required because the "Current" item has been
selected.
• Output Value
The default formula need not be changed because obtained data is to
be output directly.
Change the display format of the output value to numeric. Follow the
steps below:
1) Select cell F8.
2) Choose the Format command from the MS Excel menu bar to set
the display format for cell F8.
Choose [Format], then the [Cell...] command. The following
screen appears.
