Series 16i/160i/160is/18i/180i/180is - Model B Parameter manual Page 132

Parameter manual
4.DESCRIPTION OF PARAMETERS B-63530EN/03
- 120 -

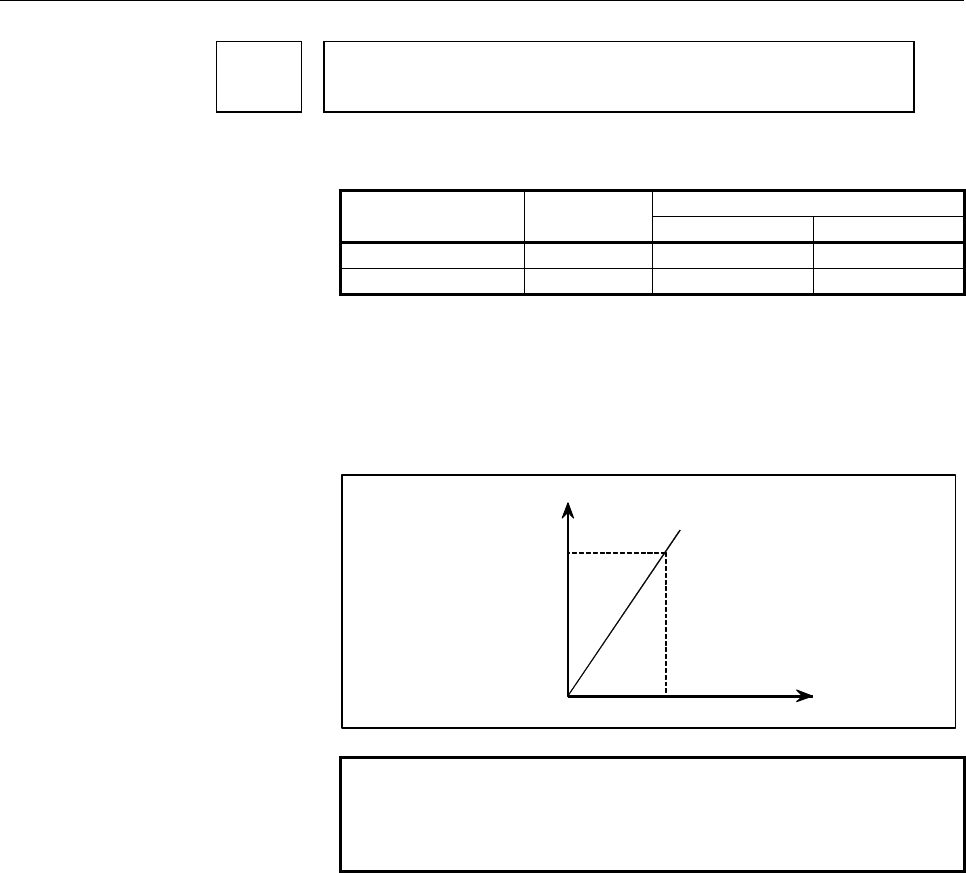

1770
Parameter 1 for setting an acceleration for linear acceleration/deceleration
before interpolation (maximum machining speed during linear
acceleration/deceleration before interpolation)
[Data type] 2-word
[Unit of data, valid data range]
Valid data range
Input increment Unit of data
IS-A, IS-B IS-C
Metric machine 1 mm/min 6 to 240000 6 to 100000
Inch machine 0.1 inch/min 6 to 96000 6 to 48000
This parameter is used to set an acceleration for linear
acceleration/deceleration before interpolation. In this parameter, set
the maximum machining speed during linear acceleration/
deceleration before interpolation. Set the time used to reach the
maximum machining speed in parameter No.1771.
Speed
Parameter 1
(No.1770)
Parameter 2 (No.1771)
Time
NOTE
When 0 is set in parameter No.1770 or parameter
No.1771, linear acceleration/deceleration before
interpolation is disabled.
