B-63530EN/03 4.DESCRIPTION OF PARAMETERS

- 515 -

HDR Setting of the direction for compensating a helical gear (1 is usually

specified.)

[Example]

When the rotation direction of the C-axis is negative (- direction)

and a left-twisted helical gear is cut:

0 : A negative (-) value is specified with P.

1 : A positive (+) value is specified with P.

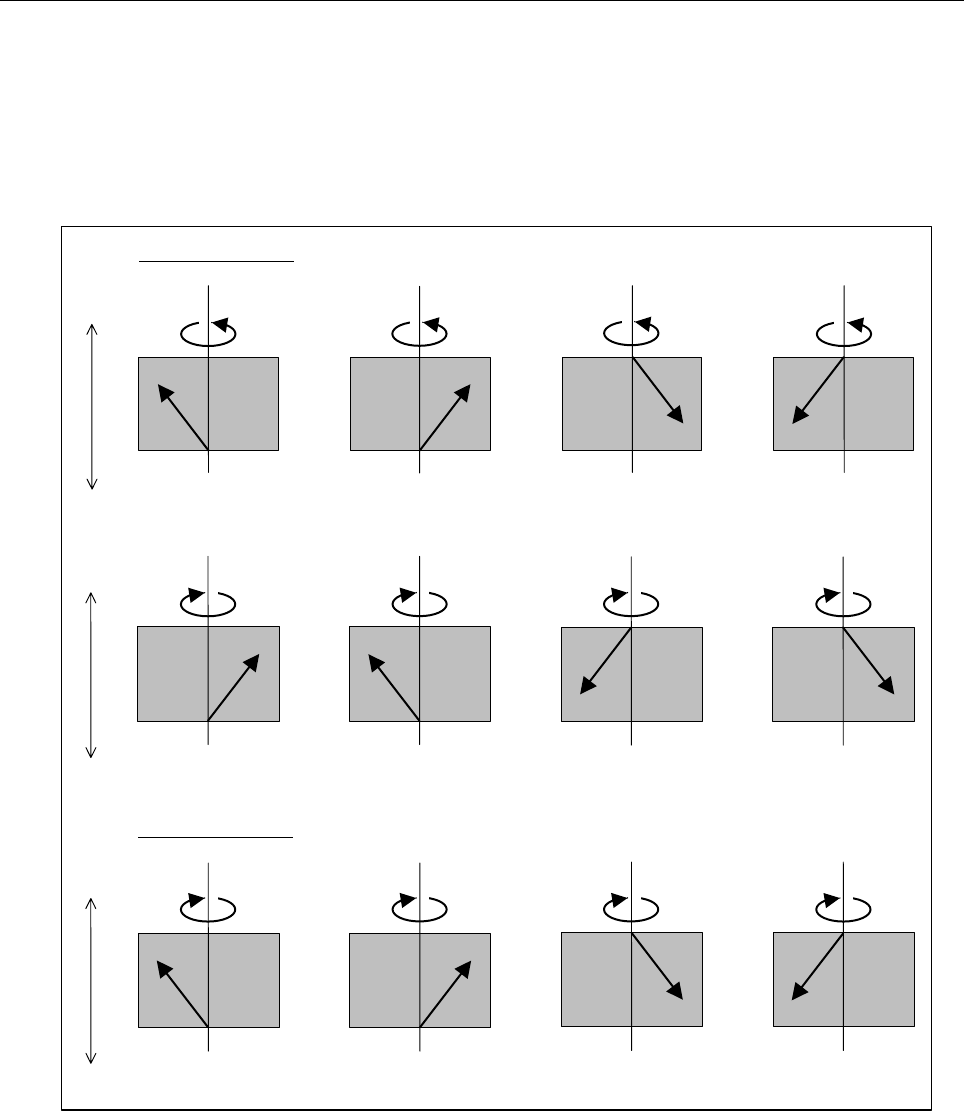

When HDR is set to 1:

C: +, Z: +, P: +

Compensation direction :+

(a)

-Z

C: +, Z: +, P: -

Compensation direction :-

(b)

C: +, Z: -, P: +

Compensation direction :-

(c)

C: +, Z: -, P: -

Compensation direction :+

(d)

-Z

C: -, Z: +, P: +

Compensation direction :-

(e)

-C

C: -, Z: +, P: -

Compensation direction :+

(f)

C: -, Z: -, P: +

Compensation direction :+

(g)

-C

C: -, Z: -, P: -

Compensation direction :-

(h)

-C

When HDR is set to 0: (Items (a) to (d) are the same as for 1.)

-Z

C: -, Z: +, P: +

Compensation direction :+

(e)

-C

C: -, Z: +, P: -

Compensation direction :-

(f)

-C

C: -, Z: -, P: +

Compensation direction :-

(g)

-C

C: -, Z: -, P: -

Compensation direction :+

(h)

-C

MLT Unit of data for the magnification for compensating C-axis servo

delay (parameters No.7714 and No.7715)

0 : 0.001

1 : 0.0001

RTO Gear ratio for the spindle and position coder specified in parameter

No.3706

0 : Disabled (Always specify 0.)

1 : Enabled
