4.DESCRIPTION OF PARAMETERS B-63530EN/03

- 128 -

1779

Critical angle subtended by two blocks for automatic corner deceleration (for

advanced preview control)

[Data type] 2-word

[Unit of data] 0.001 deg

[Valid data range] 0 to 180000

Set a critical angle to be subtended by two blocks for corner

deceleration when the angle-based automatic corner deceleration

function is used.

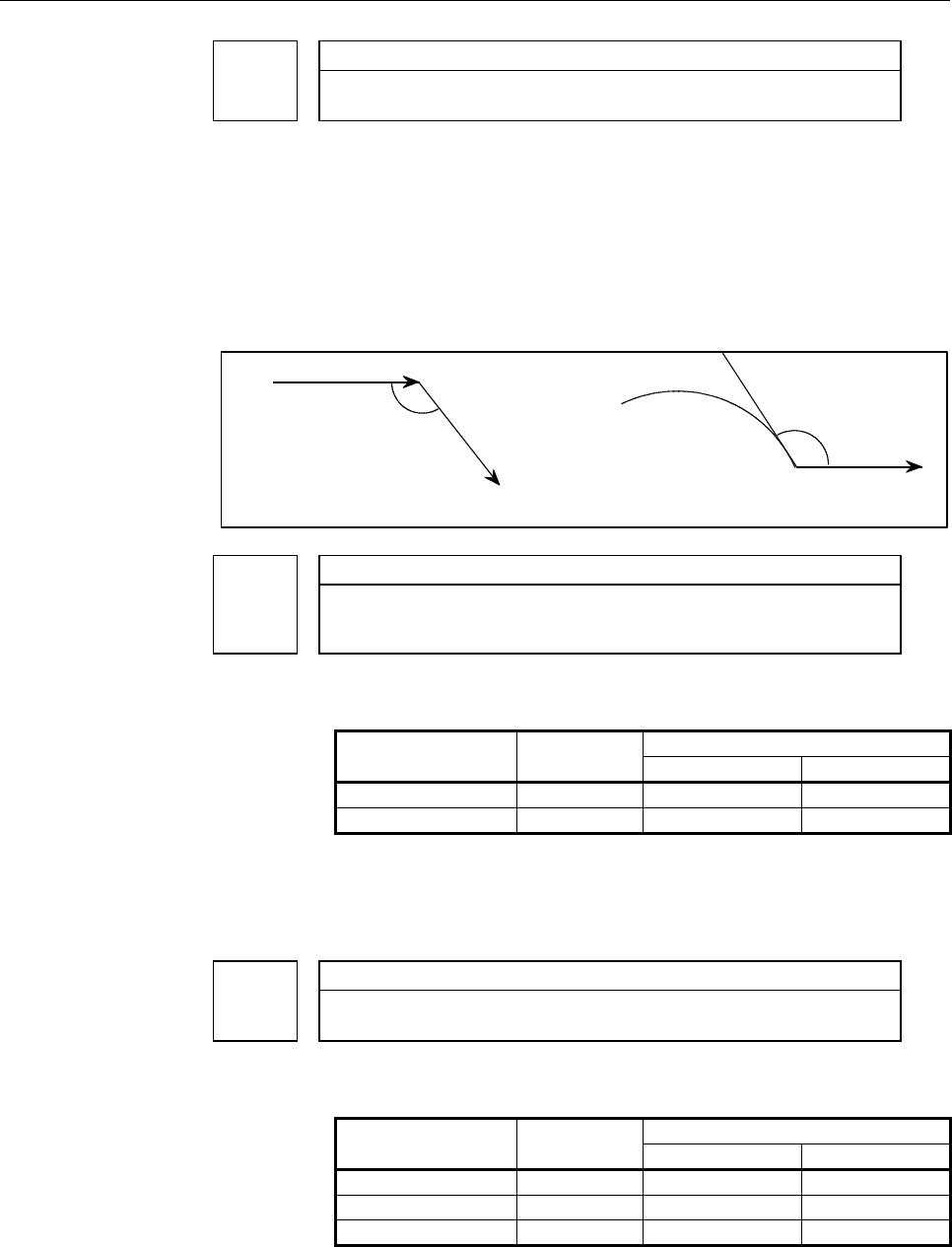

The angle subtended by two blocks is defined as θ in the examples

shown below.

Block A (G01)

Block B (G01)

ngle subtended by two straight lines

Block A (G02)

Block B (G01)

ngle subtended by an arc and its tangent

1780

Allowable speed difference for the speed difference-based corner

deceleration function (for linear acceleration/deceleration before

interpolation)

[Data type] Word

[Unit of data, valid data range]

Valid data range

Input increment Unit of data

IS-A, IS-B IS-C

Metric machine 1 mm/min 6 to 15000 6 to 12000

Inch machine 0.1 inch/min 6 to 6000 6 to 4800

Set the speed difference for the speed difference-based automatic

corner deceleration function when linear acceleration/deceleration

before interpolation is used.

1781

Allowable speed difference for the speed difference-based corner

deceleration function (for linear acceleration/deceleration after interpolation)

[Data type] Word axis

[Unit of data, valid data range]

Valid data range

Input increment Unit of data

IS-A, IS-B IS-C

Metric machine 1 mm/min 6 to 15000 6 to 12000

Inch machine 0.1 inch/min 6 to 6000 6 to 4800

Rotary axis 1 deg/min 6 to 15000 6 to 12000

Set speed difference for the speed difference-based automatic corner

deceleration function when linear acceleration/deceleration after

interpolation used.
