Return or clearance value of drilling canned cycle G83
5114
Return value of high-speed peck drilling cycle G73
[Data type] Word
[Unit of data]
Input increment IS-A IS-B IS-C Unit
Metric input 0.01 0.001 0.001 mm
Inch input 0.001 0.0001 0.0001 inch
[Valid data range] 0 to 32767

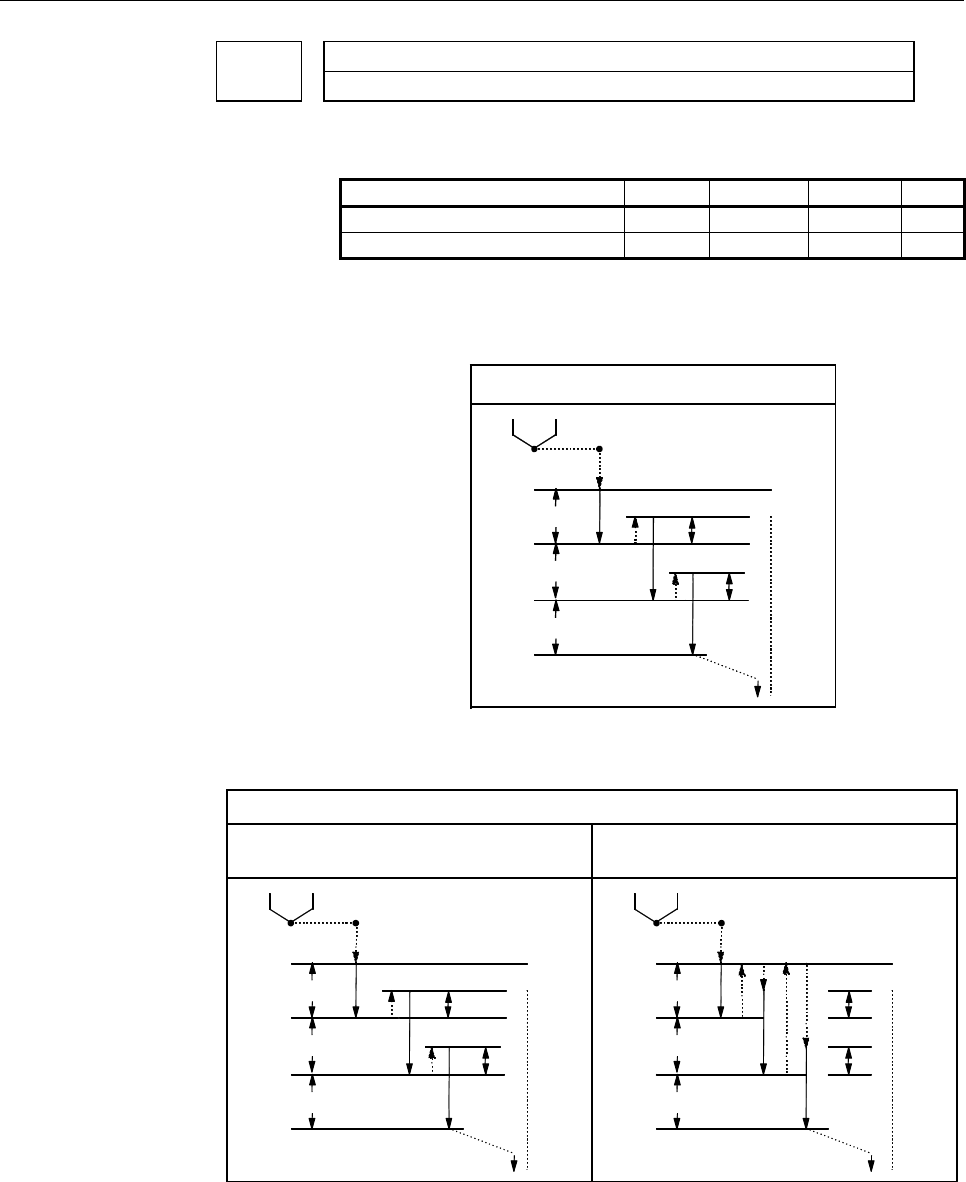

For M series, this parameter sets the return value in high-speed peck
drilling cycle G73 (G83 for T series).
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
G73 for M series
For T series, this parameter sets the return or clearance value in
drilling canned cycle G83.
Bit 2 (RTR) of parameter No.5101 =0
(Peck drilling cycle)
Bit 2 (RTR) of parameter No.5101 =1
(High-speed peck drilling cycle)
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
q : Depth of cut
d : Clearance value
R point
Z point
q
q
q
d
d
G83 for T series
