4.DESCRIPTION OF PARAMETERS B-63530EN/03

- 328 -

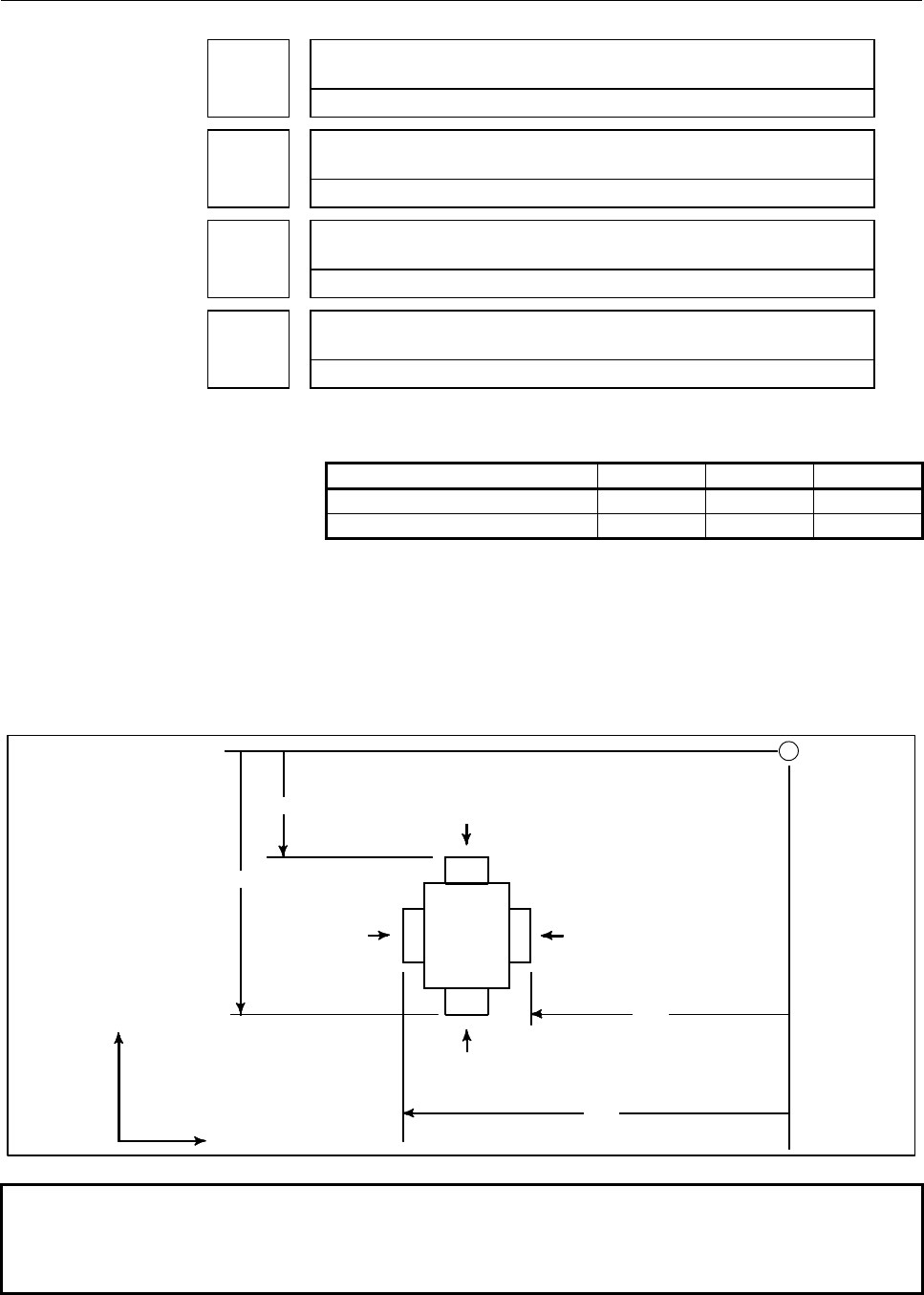

Distance (XP) between reference position and X axis + contact surface

Distance to X-axis + contact surface on the touch sensor 1 side (X1P)

5015

Distance (XM) between reference position and X axis - contact surface

Distance to X-axis - contact surface on the touch sensor 1 side (X1M)

5016

Distance (ZP) between reference position and Z axis + contact surface

Distance to Z-axis + contact surface on the touch sensor 1 side (Z1P)

5017

Distance (ZM) between reference position and Z axis - contact surface

Distance to Z-axis - contact surface on the touch sensor 1 side (Z1M)

5018

[Data type] 2-word

[Unit of data]

Input increment IS-B IS-C Unit

Metric input 0.001 0.0001 mm

Inch input 0.0001 0.00001 inch

[Valid data range] -99999999 to 99999999

These parameters are related to the direct input of tool offset value

measured B function and the tool setter function for 1-turret 2-spindle

lathes.

They set the distance (with sign) between the measurement reference

position and sensor contact surface. For an axis under diameter

programming, set it by a diameter value.

Z-axis +contact

face

Z-axis -contact face

X-axis -contact face

X-axis +contact face

measurement

reference

position

NOTE

When using two touch sensors with the direct input of tool offset value measured B

function for 2-spindle lathes, set the distance of touch sensor 1. For touch sensor 2,

set parameters No. 5056 through No. 5059.
