3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05

- 84 -

1-1 Program

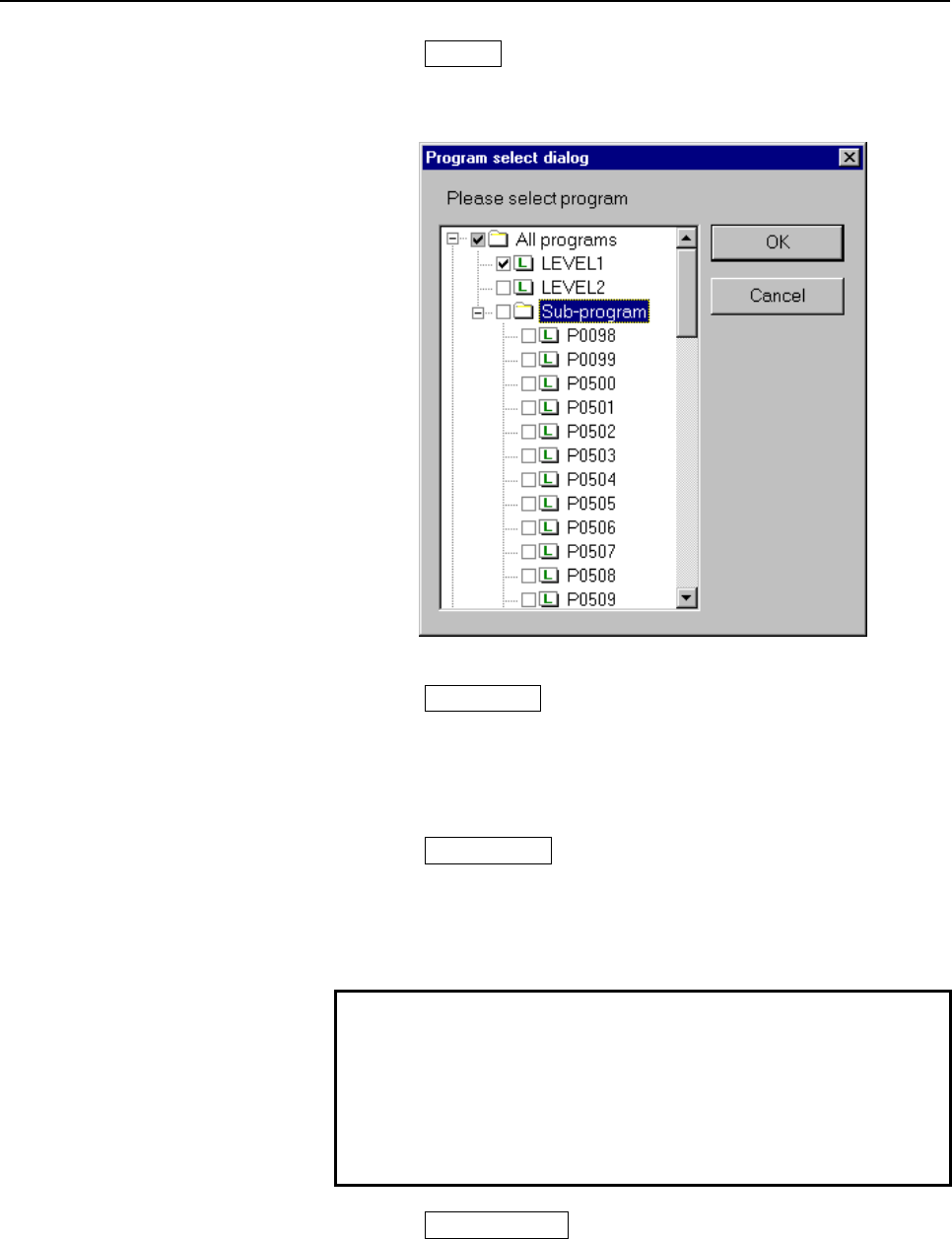

Click the <Select…> button to open the [Program select

dialog] screen. Then, select the program in which you want

to search for a string.

Fig. 3.3.23 (b)

1-2 Search string

Enter a character string you want to search for.

In a character string to be searched for, two types of

wildcards can be used: a question mark (?) and an asterisk

(*).

1-3 Replace string

Enter a character string you want to replace with.

In a character string to be replaced with, two types of

wildcards can be used: a question mark (?) and an asterisk

(*).

NOTE

1 A wildcard can substitute for one or multiple

characters.

2 A question mark (?) represents one character. This

wildcard can be used more than once to represent

characters.

3 An asterisk (*) represents zero or more characters.

1-4 Wildcard search

Check this check box if a character string to be replaced

with includes wildcards.
