6.2. Storing multi-language PMC message to PMC

7.6 Storing multi-language PMC message to PMC

Store the memory card format file made with multi-language PMC message

creation tool (Ladder Editing Package(Windows) -> PMC).

Supported PMC models

Supported

Series 30i/31i/32i-A PMC

Procedure

1. Connect to PMC (refer to 7.1 SETTING UP COMMUNICATION)

2. Select [Store to PMC…] in [Tool]

The [Program transfer wizard.] screen appears

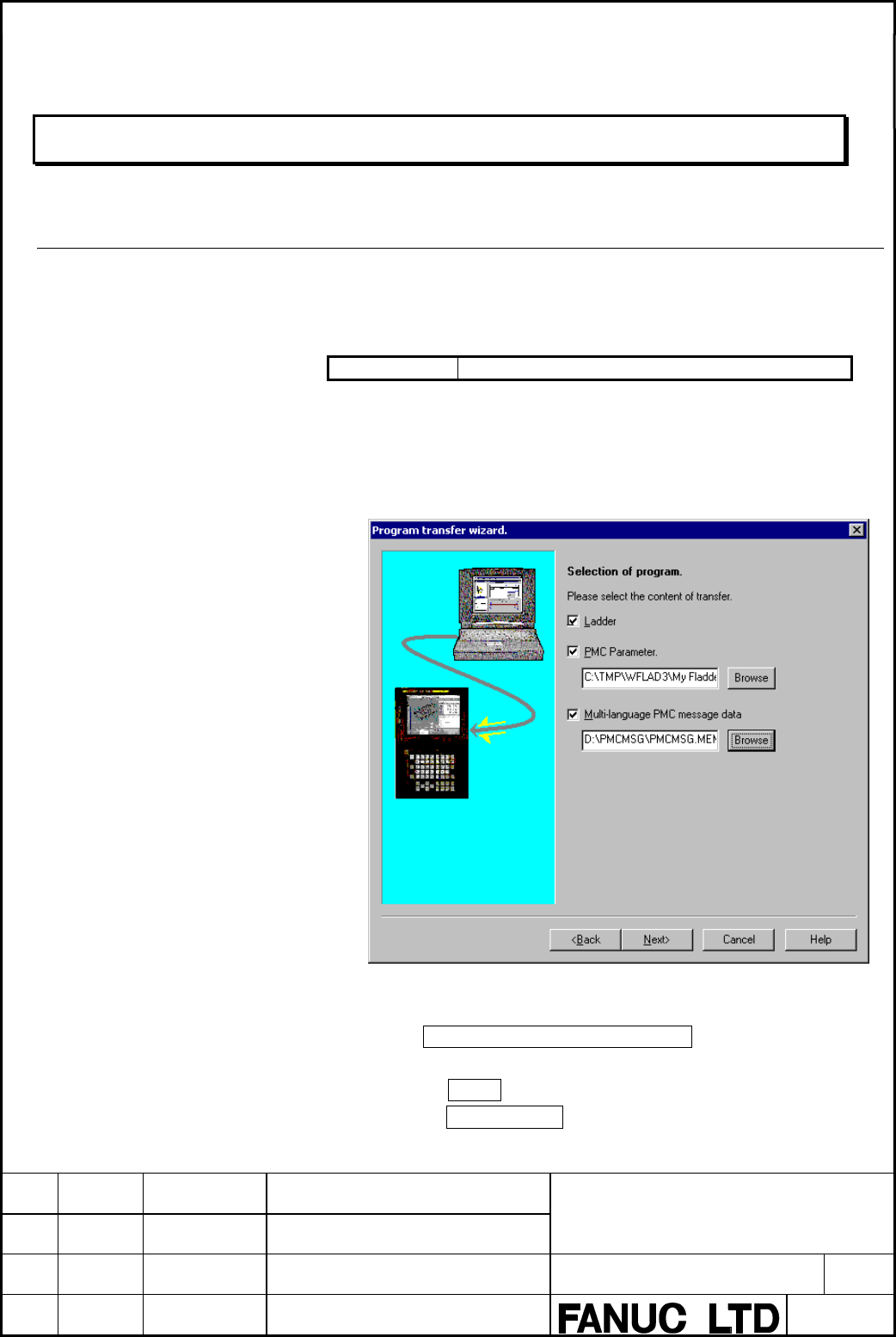

Fig.7.6(a)

3. Select the data to be stored, and input the file name.

Check Multi-language PMC message data, and input the name of

createed memory card format file.

If checked Ladder, ladder program is stored into PMC together.

If checked PMC Parameter, PMC parameteris stored into PMC together.

Click Next> button
