9.DIAGNOSIS B-63484EN/05

- 290 -

9.3 PMC PARAMETERS

PMC parameters (timers, counters, keep relays, and data table) are

displayed.

WARNING

Special care must be taken when the signal status

or PMC parameters are changed. If the change

function is not used appropriately, the machine

operation may be unpredictable.

When there are people near the machine, this

function should not be used.

CAUTION

When PMC parameters should not be changed, the

parameters may be protected.

Refer to the relevant programming manual for the

PMC being used.

9.3.1 Procedure

1 Select [Diagnose] - [PMC Parameter].

2 Display the pull-down menu, and then select [Timer], [Counter],

[Keep Relay], [Data Table], or [Set Up].

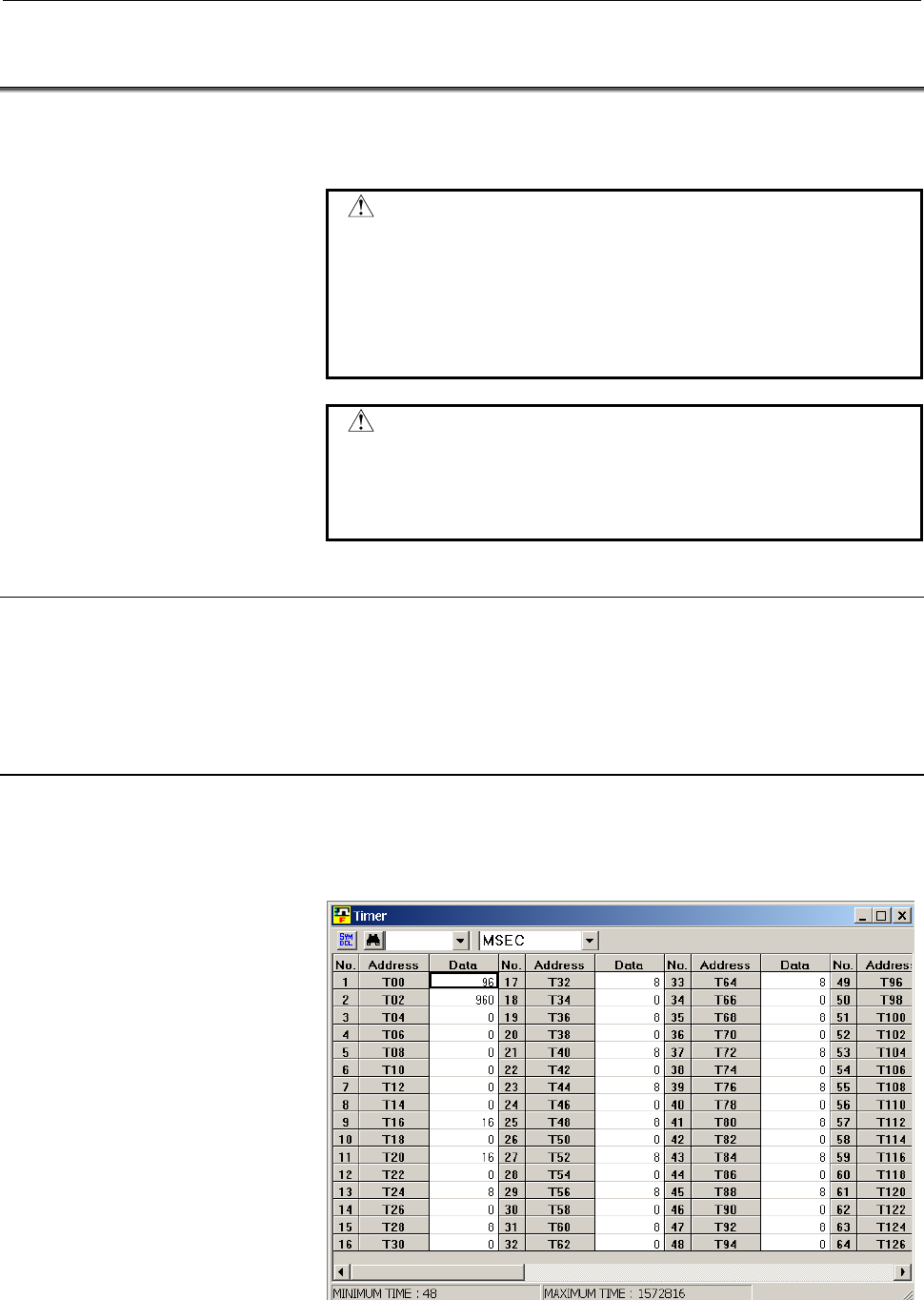

9.3.2 Timer

The contents of the timer address locations (T) used with the TMR

instruction can be displayed and modified.

When the timer accuracy is fixation by the timer number

Fig. 9.3.2 (a)
