10.2.7 Search
Search the symbol and comment data by No., symbol, address and
comment. It is ignored whether the strings are specified in upper case
or lower case.
symbol Search same symbol
address Search same address
comment Search the comment which include the specified strings.

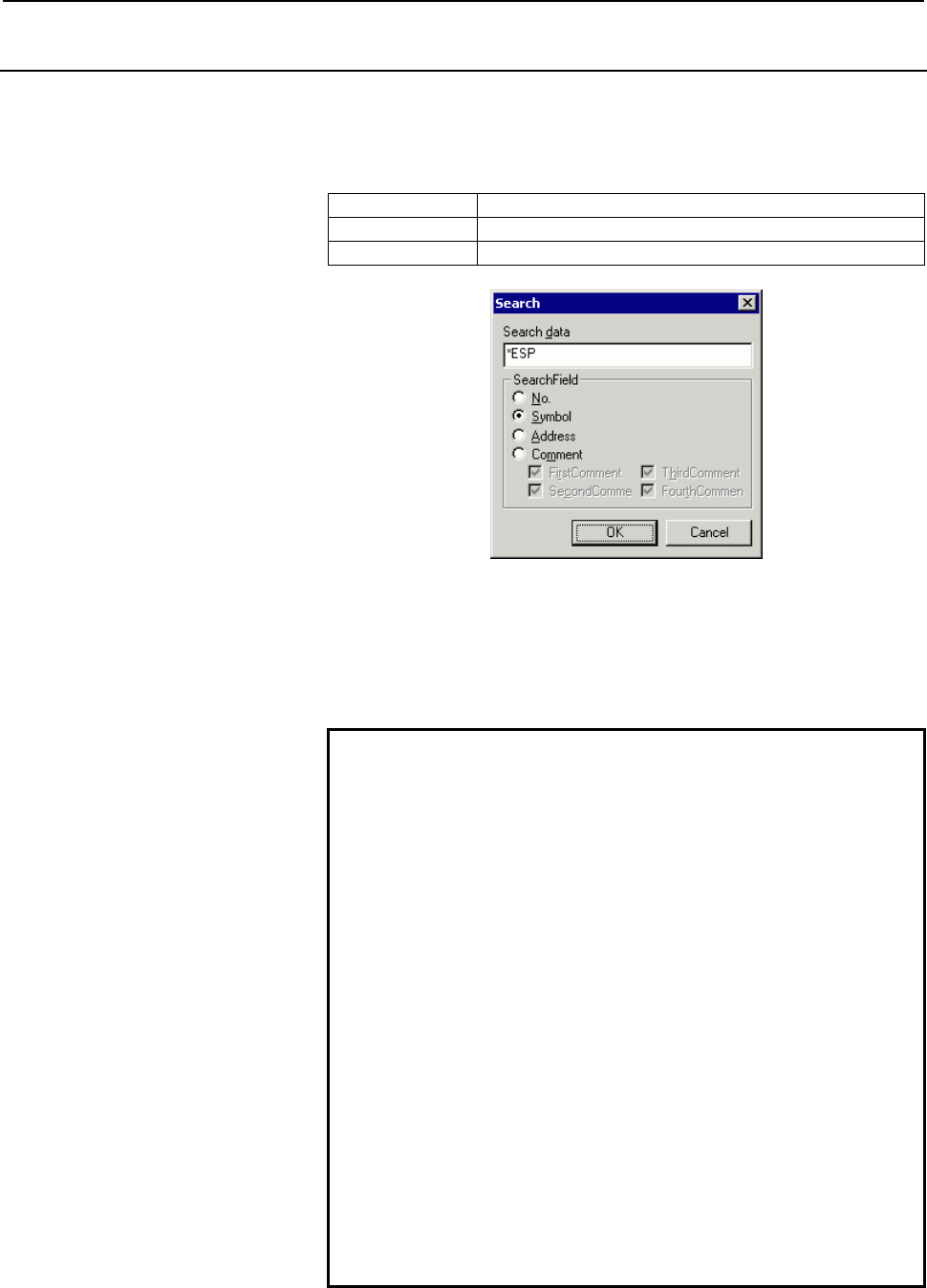

Fig. 10.2.7
Procedure
1 Input character string to search into [Search data].
2 Select the item to search by [SearchField]
3 Click <OK> button to start search.
NOTE
1 Even if the symbol data is modified or deleted in
symbol/comment editing screen, the modification of
symbol does not influence to the ladder program.
Therefore, the symbol in ladder program must be
modified too.
2 Modifying the address of symbol in
symbol/comment editing screen does influence to
the ladder program. Address of the symbol in
ladder program is changed. When the data is made
by inputting address in ladder editing screen and
then the symbol is defined in symbol/comment
editing screen, address of the symbol is not
changed by above operation. This note is not
applicable to the data which was once
de-compiled.
3 Please avoid using the symbol that has same
notation of PMC address.
4 The search by address in ladder program is
unavailable when the symbol is modified or deleted
in symbol/comment editing screen.
