9.DIAGNOSIS B-63484EN/05

- 294 -

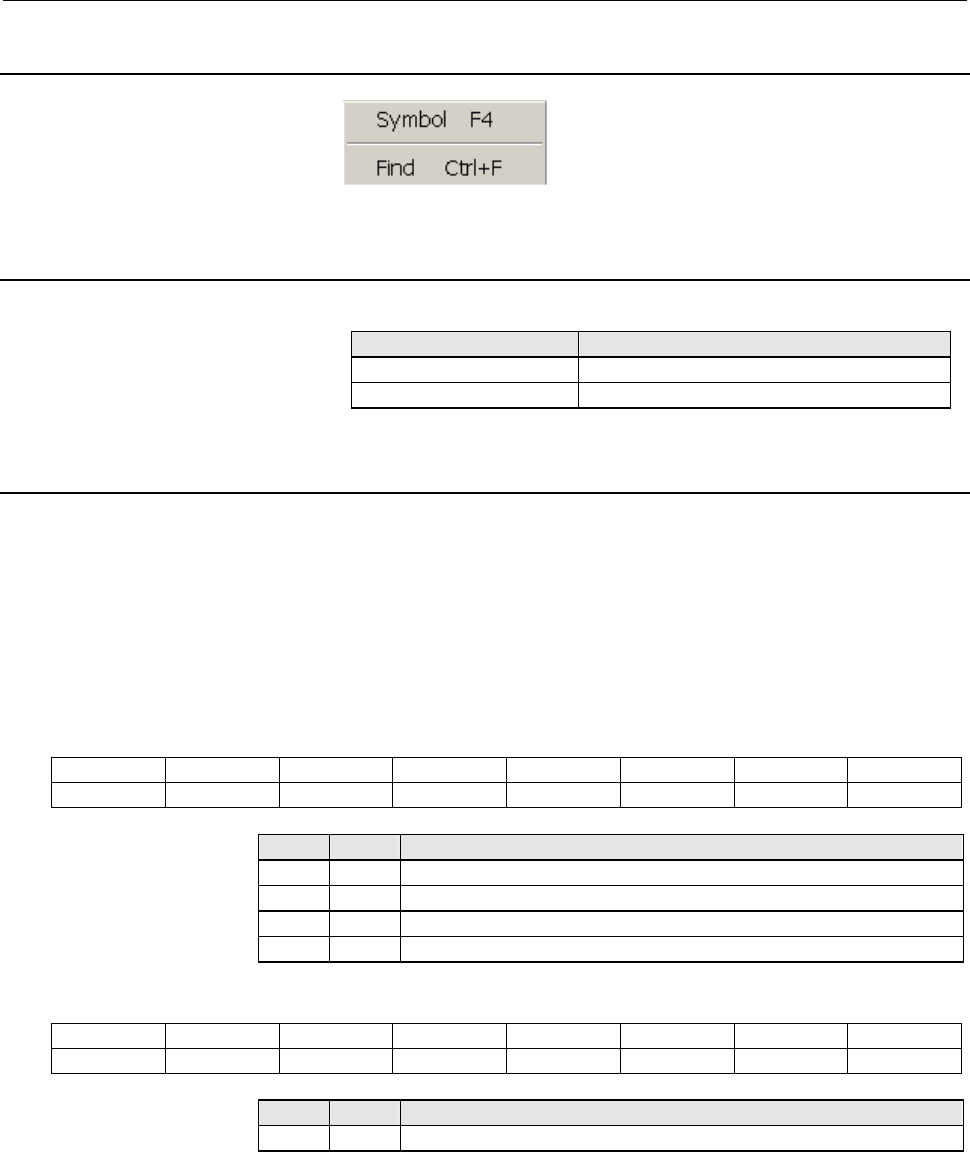

9.3.4.2 Context menu

Fig. 9.3.4.2

9.3.4.3 Shortcut keys

Table 9.3.4.3

Shortcut key Corresponding function

[F4] Symbol indication (off ↔ on)

[Ctrl]+[F] Search

9.3.4.4 Data for PMC control software

Because some keep relays are used by the PMC control software,

sequence programs cannot use the data in these keep relays.

This subsection describes only the signals relating to online function

operations. For detailed information and other signals, refer to the

"PMC Ladder Language Programming Manual" (B-61863E).

The bits marked * are used by the PMC control software and are not

related to the online function operations.

K17 or K900

#7 #6 #5 #4 #3 #2 #1 #0

DTBLDSP * * MEMINP * * PRGRAM

LADMASK

Bit Value Meaning

#7 1 Does not display the PMC parameter data table control screen.

#4 0 Does not allow you to change the signal status.

#1 0 Does not allow you to use the online edit function and I/O function.

#0 0 Does not display the ladder monitor screen.

K19 or K902

#7 #6 #5 #4 #3 #2 #1 #0

* * * * * * *

FROM-WRT

Bit Value Meaning

#0 1 Displays a dialog box for writing to F-ROM at the end of online editing.
