B-63484EN/05 9.DIAGNOSIS

- 287 -

9.2 SIGNAL STATUS

The PMC signal status can be displayed and changed in real-time.

WARNING

Special care must be taken when the signal status

or PMC parameters are changed. If the change

function is not used appropriately, the machine

operation may be unpredictable.

When there are people near the machine, this

function should not be used.

CAUTION

1 The statuses of some signals cannot be changed.

The status of such a signal is not changed when a

sequence program, the CNC, the MMC, or an

external I/O unit such as the I/O-Link is repeatedly

writing data into the address of the signal. (The

CNC repeatedly writes data to address F, the MMC

repeatedly writes data to address M, and the

external I/O unit repeatedly writes data to address

X.)

2 When a bit signal of the D8192-D9999 addresses

is changed, other bit signals of the same byte

address are overwritten at the same time.

Therefore, it can happen that the signal state might

not change as specified if the signals of the same

D address is changed by the PMC program and the

CNC at the same time.

9.2.1 Procedure

1 Select [Diagnose] - [Signal Status]. The [Signal Status] screen

appears.

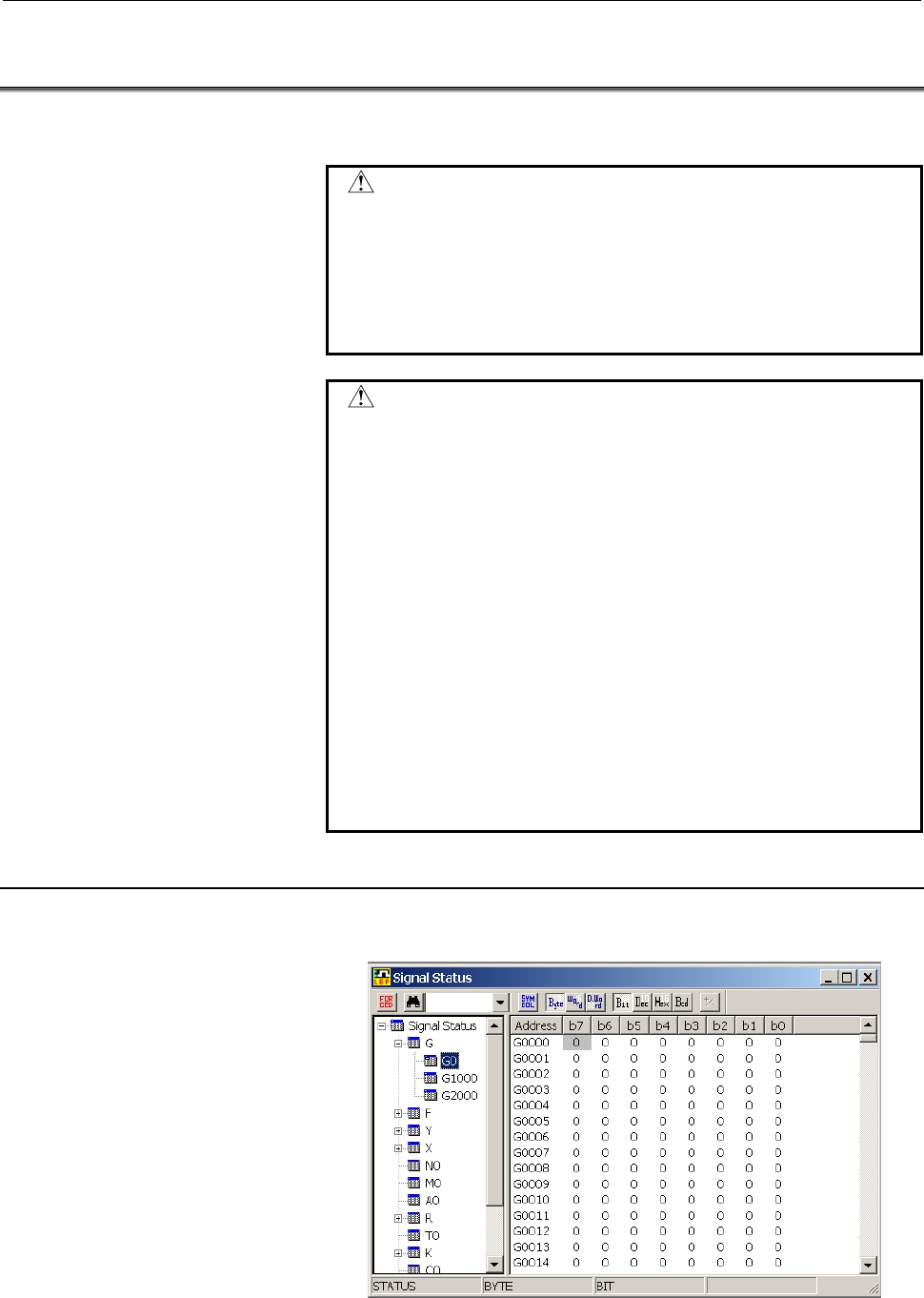

Fig. 9.2.1
