Open CNC (Ladder Editing Package, Windows) Operators manual Page 498

Operators manual
FANUC OPEN CNC LADDER EDITING
PACKAGE (Windows) SUPPLEMENTARY
OPERATOR’S MANUAL
01 05/03/29 First issue B-63484EN/05-2
EDIT
DATE
DESIG.
DESCRIPTION
22/23
TITLE
DRAW.NO.
SHEET
CUST.

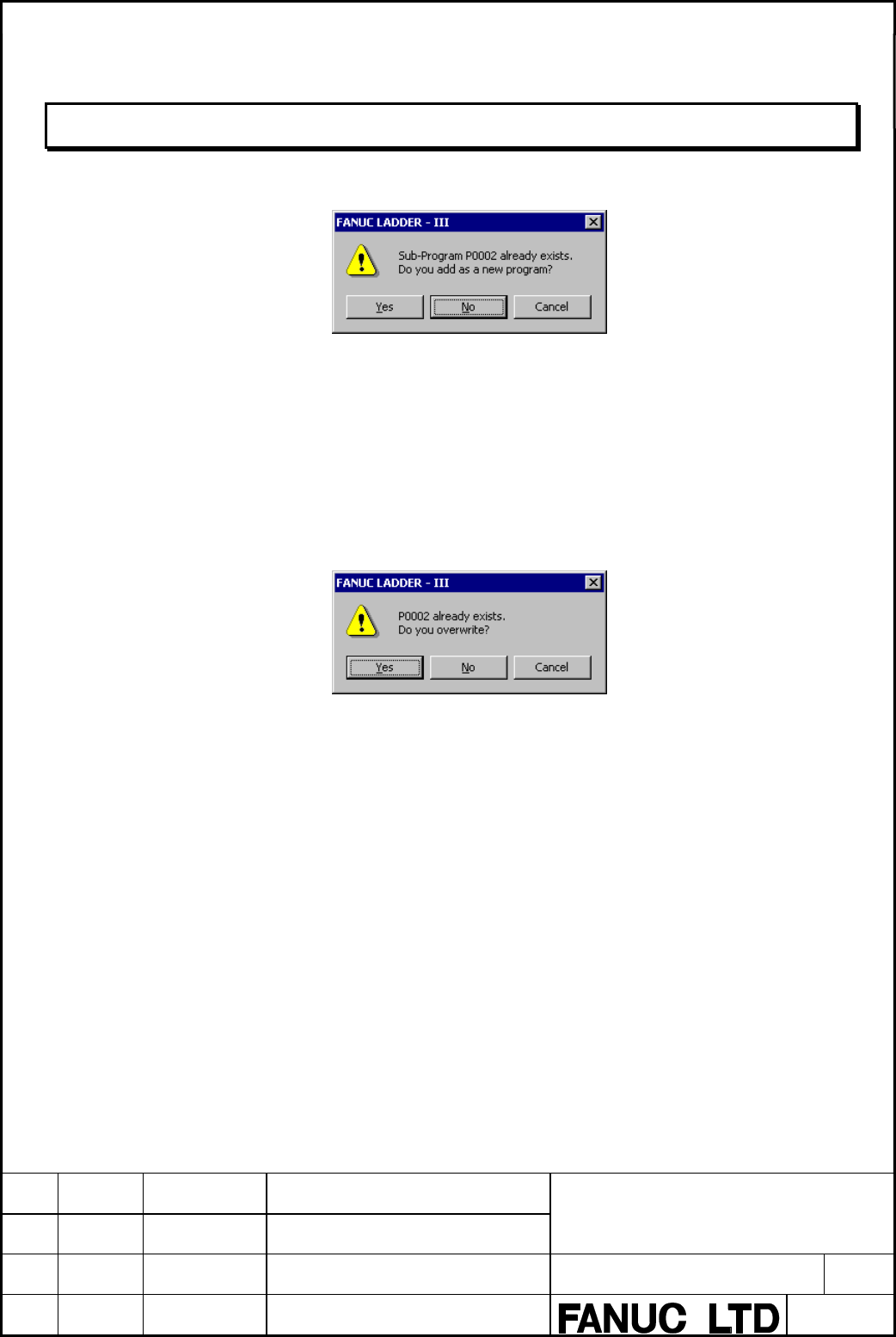

5.2. Change the copy of the ladder subprogram
[Before]
Fig. 3.3.12(c)
<Yes> :The subprogram is added as a new subprogram
<No> :The subprogram is overwritten
<Cancel> :Cancel the paste operation
Select <Yes> button when you want to paste it as a new subprogram.
[After]
Fig. 3.3.12(c)
<Yes> :The subprogram is overwritten.
<No> :The subprogram is added as a new subprogram.
The existing subprogram is not changed.
<Cancel> :Cancel the paste operation.
Push "Yes" button when you want to overwrite the existing
subprogram..
"Fig. 3.3.12(c)" of "3.3.12 Copying a ladder subprogram" is updated.
