3.13.1 Procedure

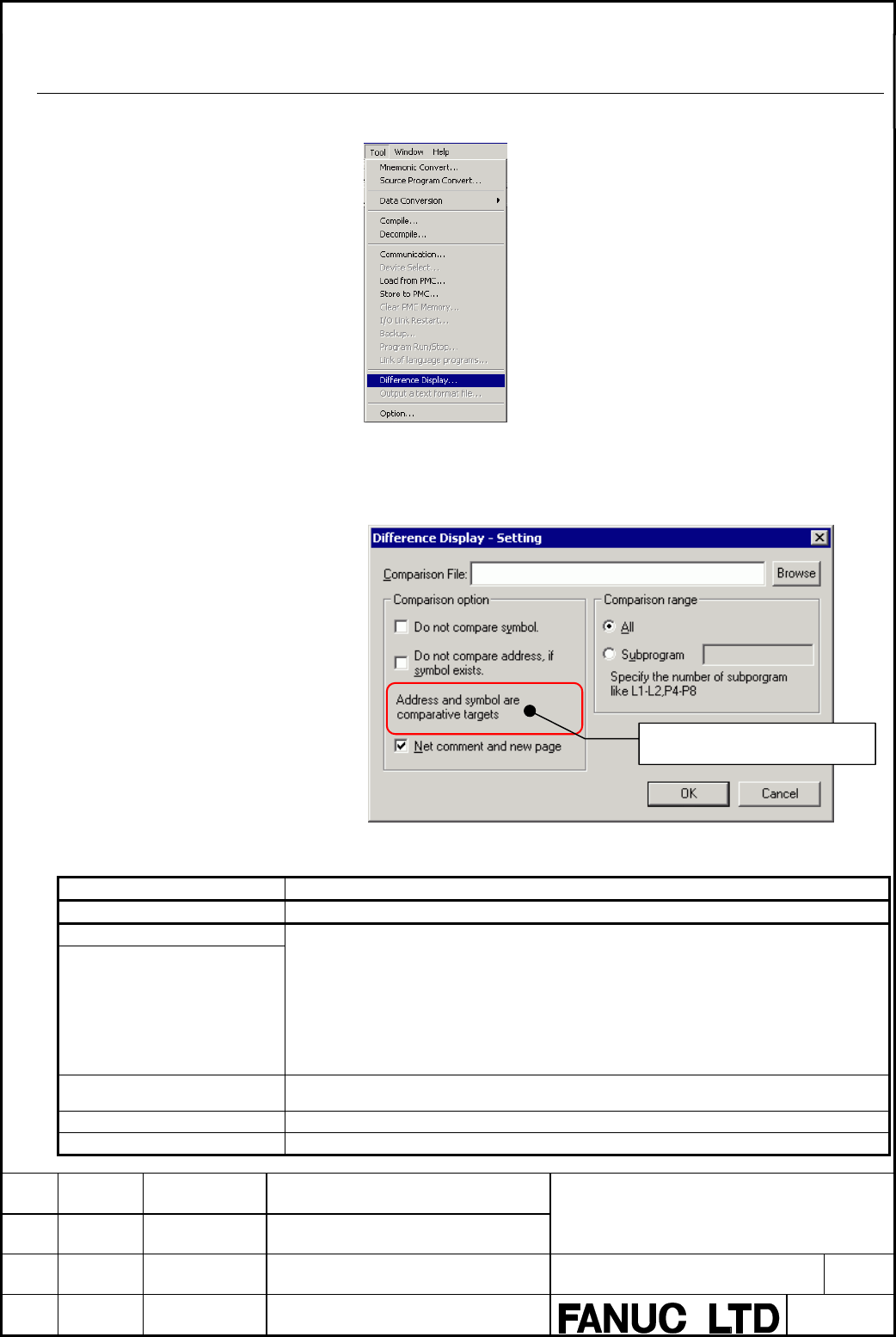

1. Click [Difference Display...] in [Tool] menu.

Fig. 1.13.1(a)

2. Input each data.

Click <OK> button after inputting data.

Fig. 1.13.1(b)

Item Contents

Comparison File:

Enter the program file name (LAD file name) for comparing

Do not compare symbol

Do not compare address, if

symbol exists

Decide the comparison mode. The relation between the mode and setting is as follows.

MODE A：Do not check both.

Address and symbol are compared

MODE B：Check “Do not compare symbol”

Only address is compared

MODE C：Check “Do not compare address, if symbol exists”

Only symbol is compared

Please refer to table3.13.1(a) for details of the comparison mode.

Net comment and new page

Checked: Compare the net comment and new page.

Not checked: Compare neither net comment nor new page.

All

Compare all subprograms.

Subprogram

Compare only specified subprograms.

The explanation according to the

comparison mode is displayed.
