Open CNC (Ladder Editing Package, Windows) Operators manual Page 237

Operators manual
B-63484EN/05 5.COMPILATION AND DECOMPILATION
- 209 -
Details of the options are listed below.
Table 5.2 (a)
Option Explanation
Symbol/Comment is
dec
ompiled
If not checked, no symbol/comment data is decompiled.
The definition of the source is directly used.
New
The definition of the source program is newly made from
the symbol and comment of object code.
Add(Merging the
Symbol/ Comment has
given priority to the
S
ource data)
The symbols of the source program and object code are
merged only for a symbol and comment. If the same
symbol and comment exist, the definition of the source
program is used.
Add(Merging the
Symbol/ Comment has
given priority to the
M
emory card data)
The symbols of the source program and object code are
merged only for a symbol and comment. If the same
symbol and comment exist, the definition of the object
code is used.
Add
The symbols of the source program and object code are
merged only for a symbol and comment. If the same
symbol and comment exist, the using definition can be
separately selected for symbol, first comment or second
comment.
Please push <D
etail> button and select the using
definition on [Detail] dialog box.

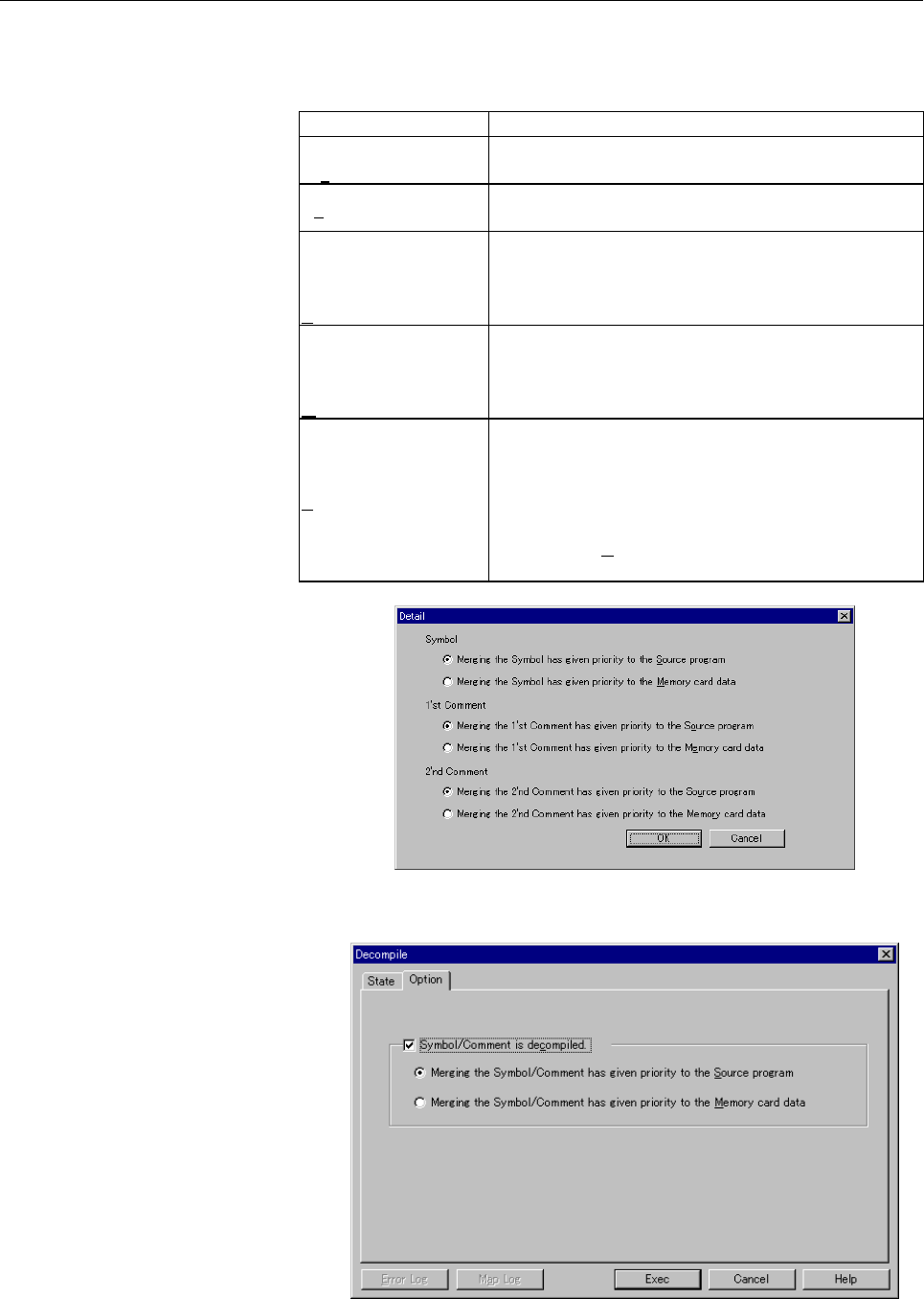

Fig. 5.2 (c)
• PMC model which does not support the multiple comments
Fig. 5.2 (d)
