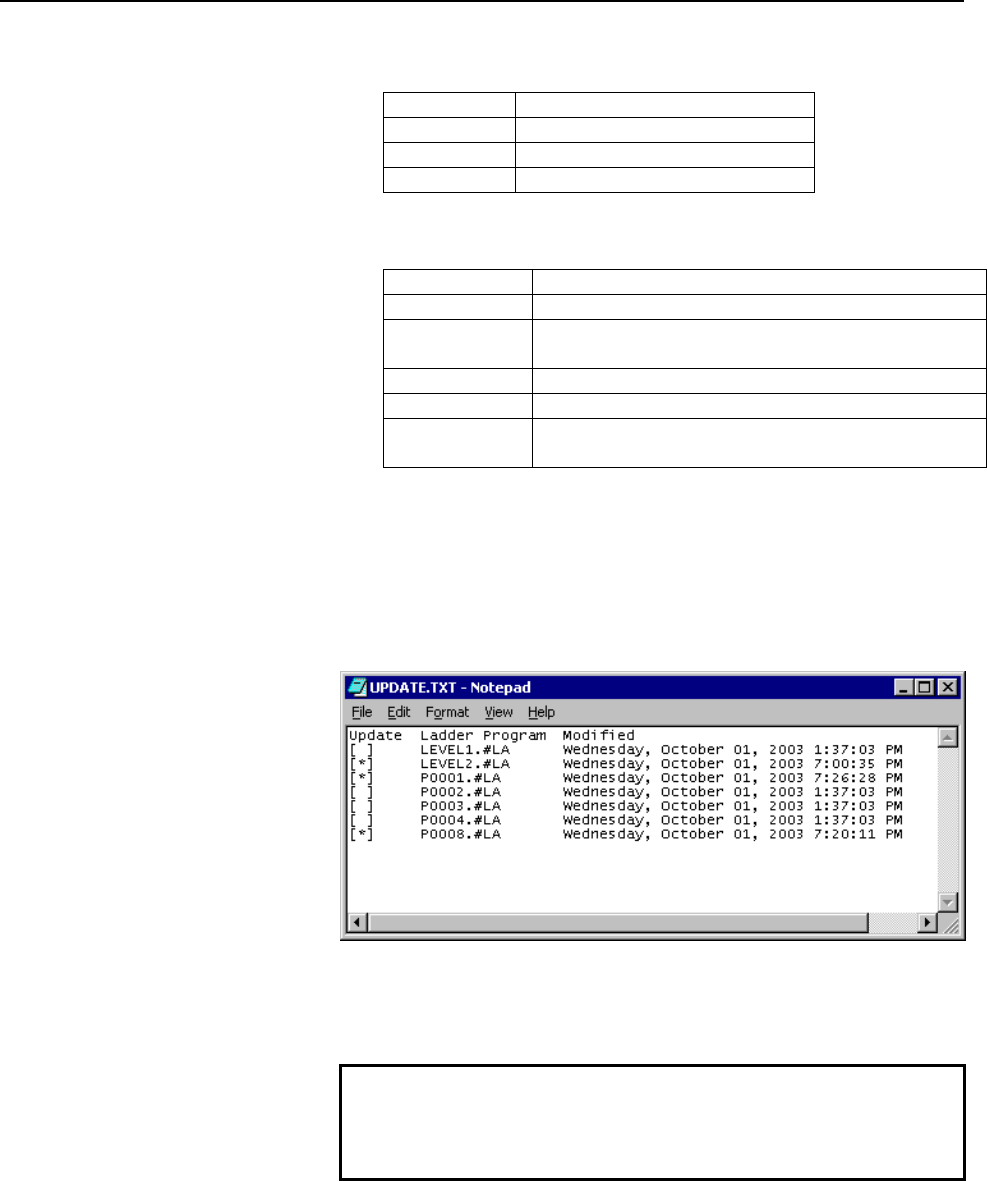

5.COMPILATION AND DECOMPILATION B-63484EN/05

- 212 -

Header information

Item Contents

File name LAD file name

PMC Type The model of PMC

Date Date the file was created.

* Date is dependent on "Regional options".

Size information

Item Contents

Message Data size of a message.

Symbol

Comment

Data size of a symbol and a comment.

Ladder program Data size of a ladder and step sequence.

Memory Used Data size of the all ladder program .

F-ROM Used

Size of Flash ROM necessary to store a ladder

program.

* KB is KByte.

6 <Update Log> button

Only the modules which were modified in the object code are

decompiled.

To confirm the modified module, please press <Update Log>

button.

Fig. 5.2 (j)

[ ] The file was not updated by decompilation.

[*] The file was updated by decompilation.

NOTE

The display format of "Modified" is dependent on

"Regional options". So, the contents of the display

may differ.
