Open CNC (Ladder Editing Package, Windows) Operators manual Page 97

Operators manual

Page of 571

/ 571

B-63484EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 69 -

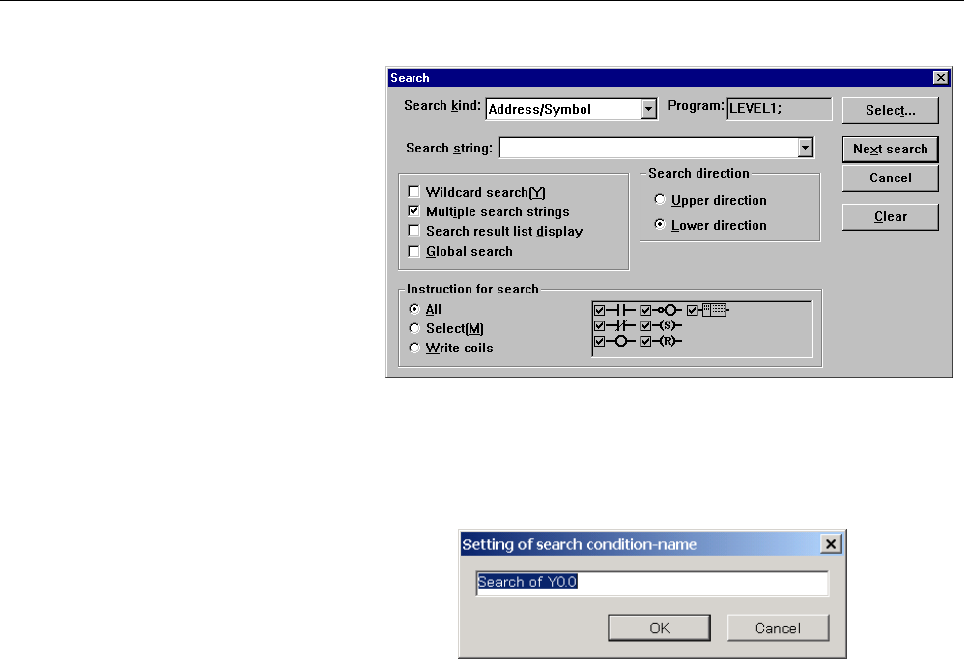

2 Click the <Add Condition> button. The [Search] screen appears.

Fig. 3.3.18.1 (c)

2-1 After setting search conditions, click the <OK> button.

For each setting item, see Subsection 3.3.17, "Search."

3 The [Setting of search condition-name] screen appears.

Fig. 3.3.18.1 (d)

3-1 A character string that consists of the words "Search of"

added to the start of a character string set in Search string on

the [Search] screen is displayed. (Example: Search of Y0.0)

A set character string can be modified.

A set character string is displayed as a search condition

name in the search condition list on the [Search Monitor]

screen.

3-2 After setting a desired character string, click the <OK>

button.
