B-63484EN/05 10.EXTENDED SYMBOL/COMMENT FUNCTION
- 343 -
10.3.5 Comment of Contact and Coil
You can select the comments to be displayed with associated contacts
and coils.

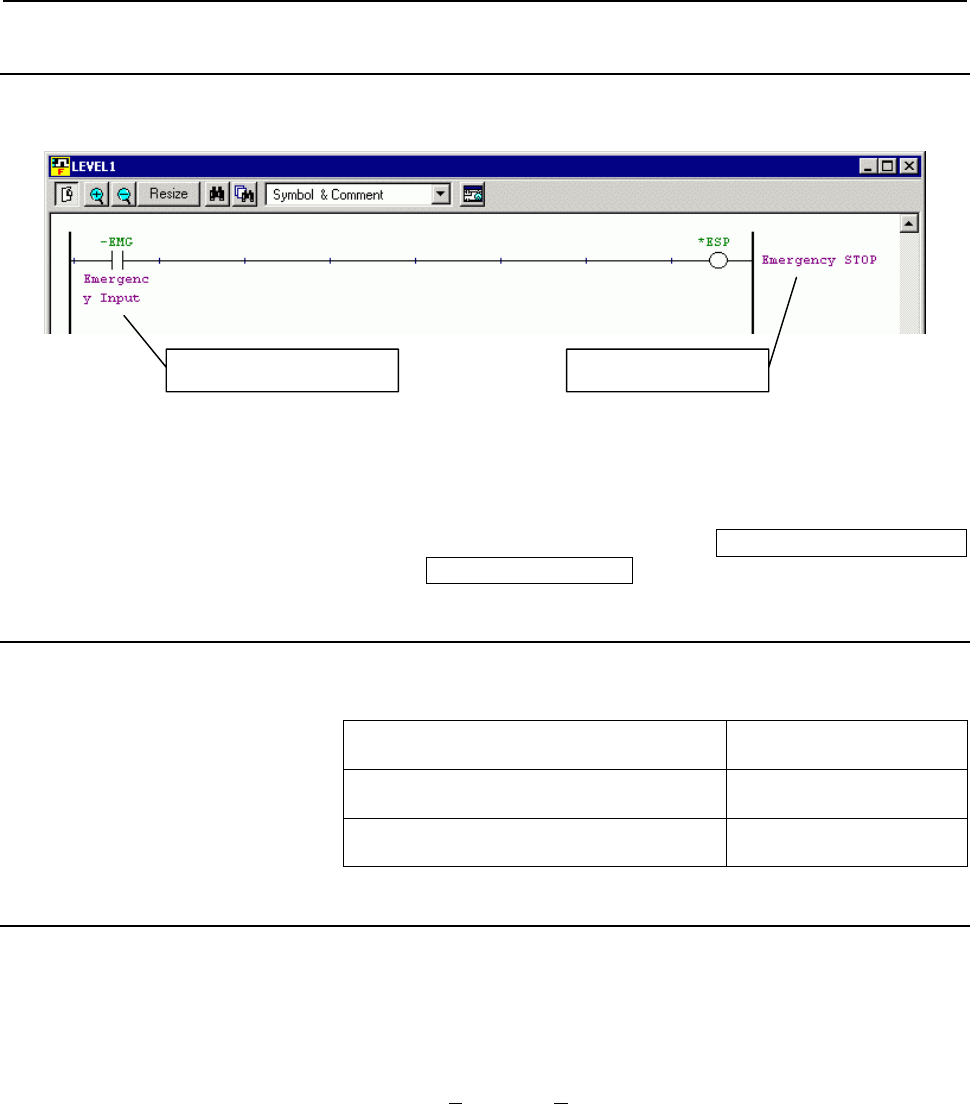

Comment for contact Comment for coil
Fig. 10.3.5
Procedure
1 Click [Option] in [Tool] menu.
2 Click [Ladder] tab in [Option] window.
3 Choose comment in the list-boxes Show comment of Contact
and Show comment of Coil.
10.3.6 How to Change Symbol or Address
You can choose one of following ways to change address or symbol in
ladder diagram:
1. Search the address, and change them one
by one.
Search function
2. Collect the appearance of the address, and
change them one by one.
Search function
Collective Display function
3. Use Replace function to change them at
once.
Replace function
10.3.6.1 Search Function
You can find a symbol, address, or functional instruction in the ladder
diagram.
Procedure
1 Open the ladder program in which you want to find something.
2 Click [F
ind…] in [Edit] menu, or press <Ctrl>+<F>.
3 [Search] screen appears.
