B-63484EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 163 -

To export, click the <Yes> button. To return to the

[Import/Export -- Select Data File, Ladder Diagram,

Subprogram, and/or User File] screen without continuing,

click the <No> button.

• User File

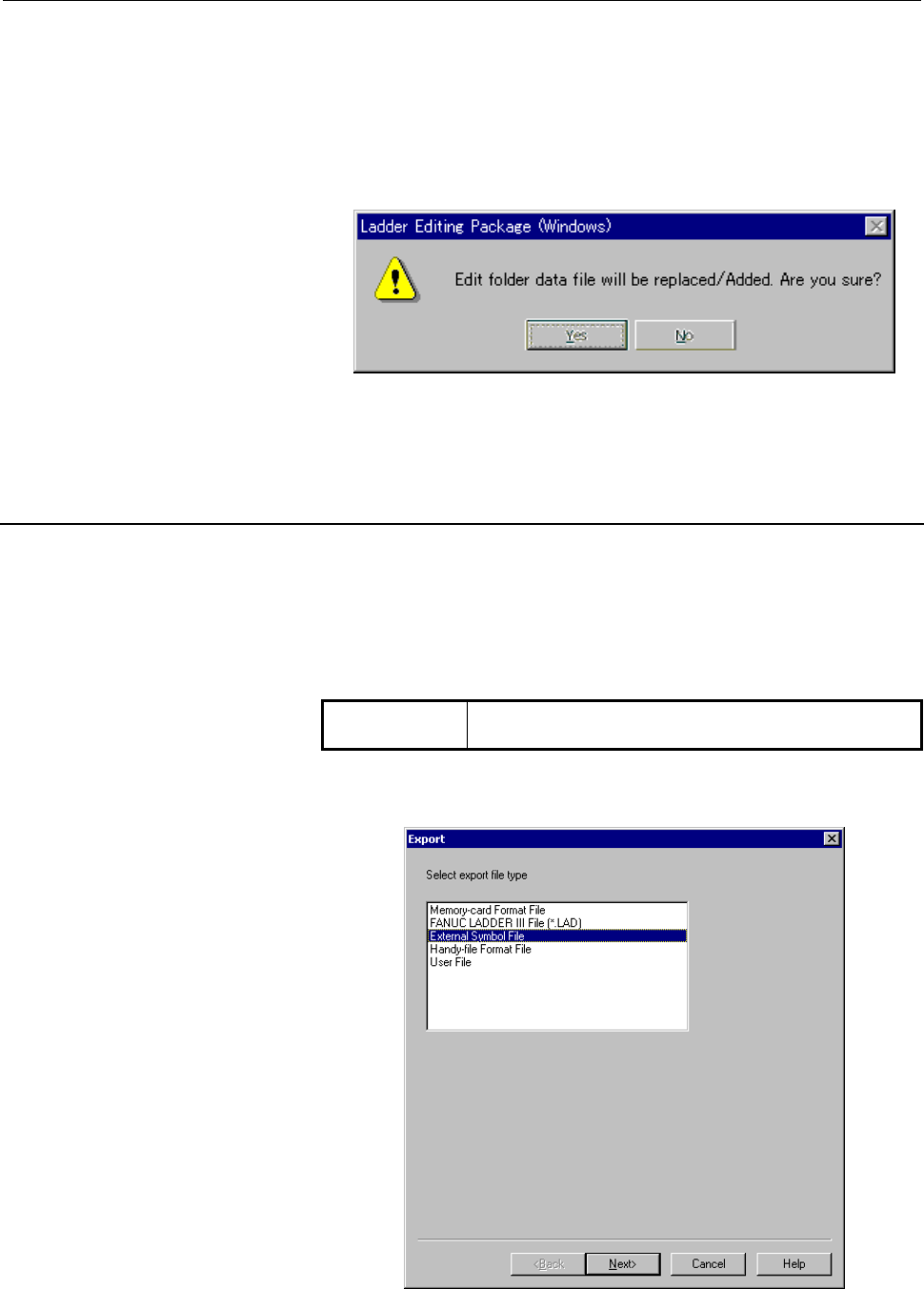

Fig. 3.11.1 (f)

To export, click the <Yes> button. To quit exporting, click

the <No> button.

3.11.2 Export of the External Symbol File

This function outputs the symbol/comment of external symbol file

format. External symbol files are composed of identification code and

the comma separated text file. You can edit the symbol/comment data

by the external application such as Microsoft Excel, Text editor.

Supported PMC models

Supported

30i/31i/32i-A Extended function

30i/31i/32i-A

Operation

1 Select [File]-[Export...]. Then, the [Export] dialog appears.

Fig. 3.11.2 (a) Export dialog
