7.7.2 Program Transfer Wizard

This wizard displays a group of dialog boxes for performing a series

of setup operations necessary for program comparison operations. At

the prompts on the dialog pages, set the necessary items.

7.7.2.1 Selecting a transfer method

To perform program comparison operations, select "I/O by "I/O" key

operation" as a transfer method.

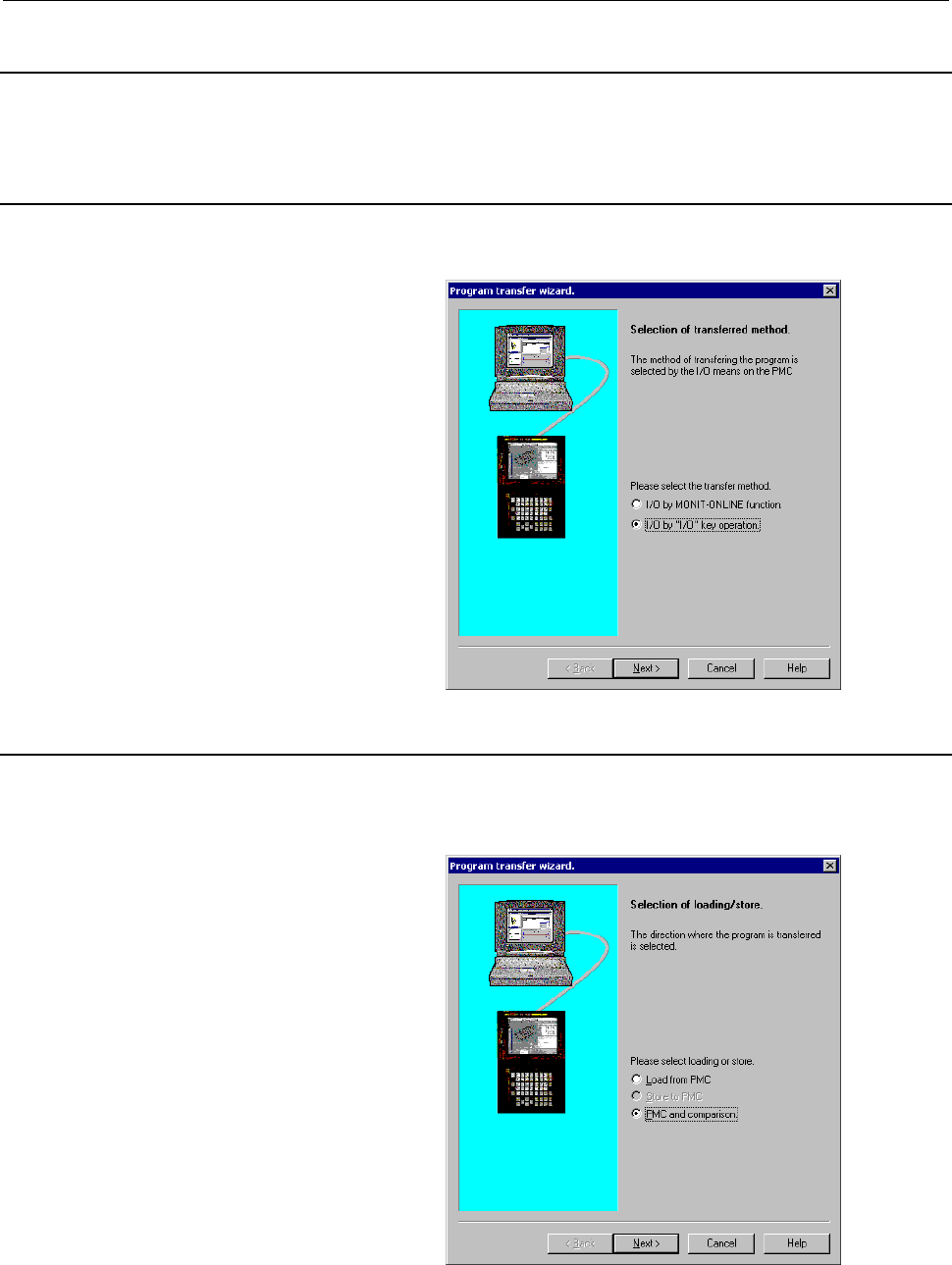

Fig. 7.7.2.1

7.7.2.2 Selecting a transfer direction

The transfer direction selection dialog box appears. To use the

compare function, select "PMC and comparison" and click the <Next>

button.

Fig. 7.7.2.2

On the subsequent pages of the wizard, follow the instructions

indicated.
