Open CNC (Ladder Editing Package, Windows) Operators manual Page 136

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 108 -
3.4 EDITING STEP SEQUENCES
This section describes how to edit step sequence programs.
NOTE
Step sequence programs can be displayed and
edited only when the current programmer mode
(offline/online) is offline. To change the
programmer mode to offline, select [Ladder] -
[Online/Offline].
How to display the step sequence edit screen
Procedure

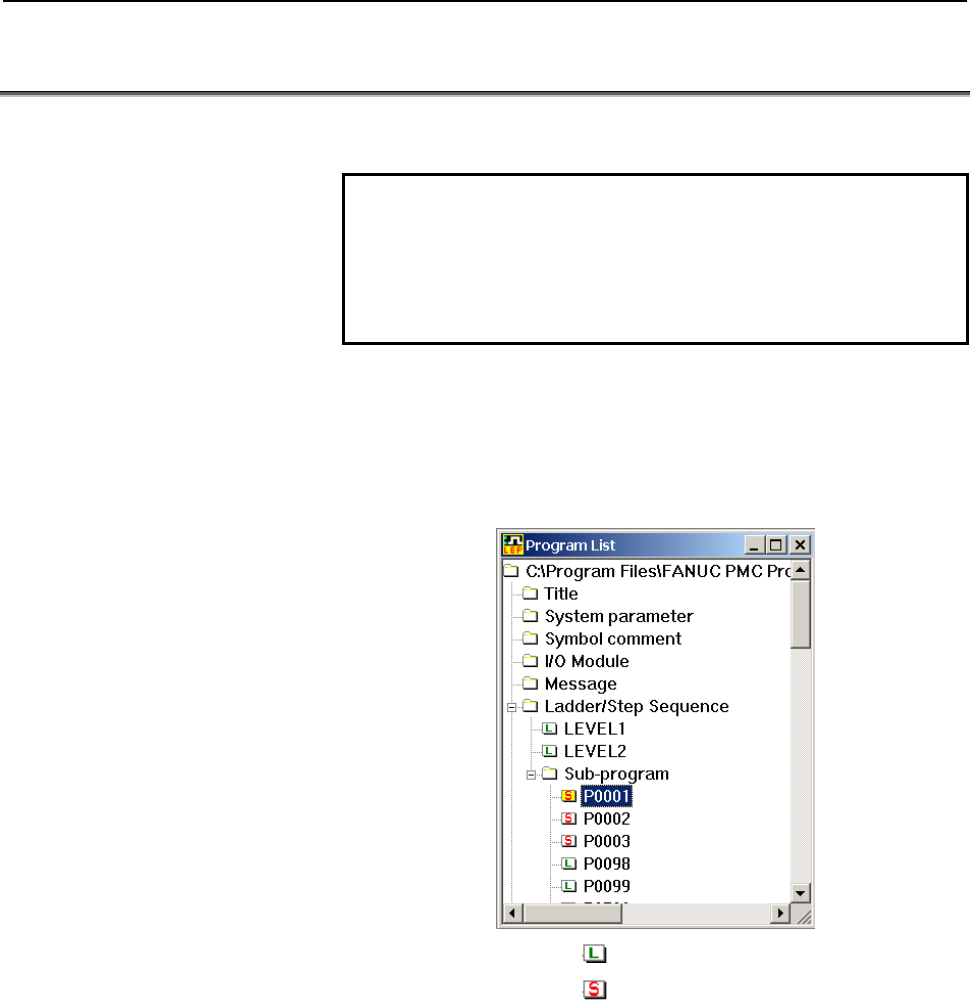

1 Select [View] - [Program List]. The [Program List] screen
appears. (Usually, this screen appears automatically when a LAD
program is created or opened.)
Fig. 3.4 (a)
2 On the [Program List] screen, double-click the step sequence
program you want to edit. Alternatively, select the step sequence
program, and then press the [Enter] or [F10] key.
Ladder program
Step sequence program
