Open CNC (Ladder Editing Package, Windows) Operators manual Page 188

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 160 -
Handy-file Format File
A memory card file (MCARD) is exported from the
currently open sequence program to a file in Handy
file format.
User File
A user file is exported from the user file folder
(MyFladder) for the currently open sequence program.
See Subsection 3.1.3 "Work Folders and Online
Program Files," for explanations about the user file
folder.
NOTE
There is an inquiry of compilation when the
Memory-card File/ROM Format File/Handy-file
Format File is exported with only the source
program updated.
Please compile if necessary.
3 Click the <Next> button. The [Import/Export -- Specify export
file name] dialog appears.

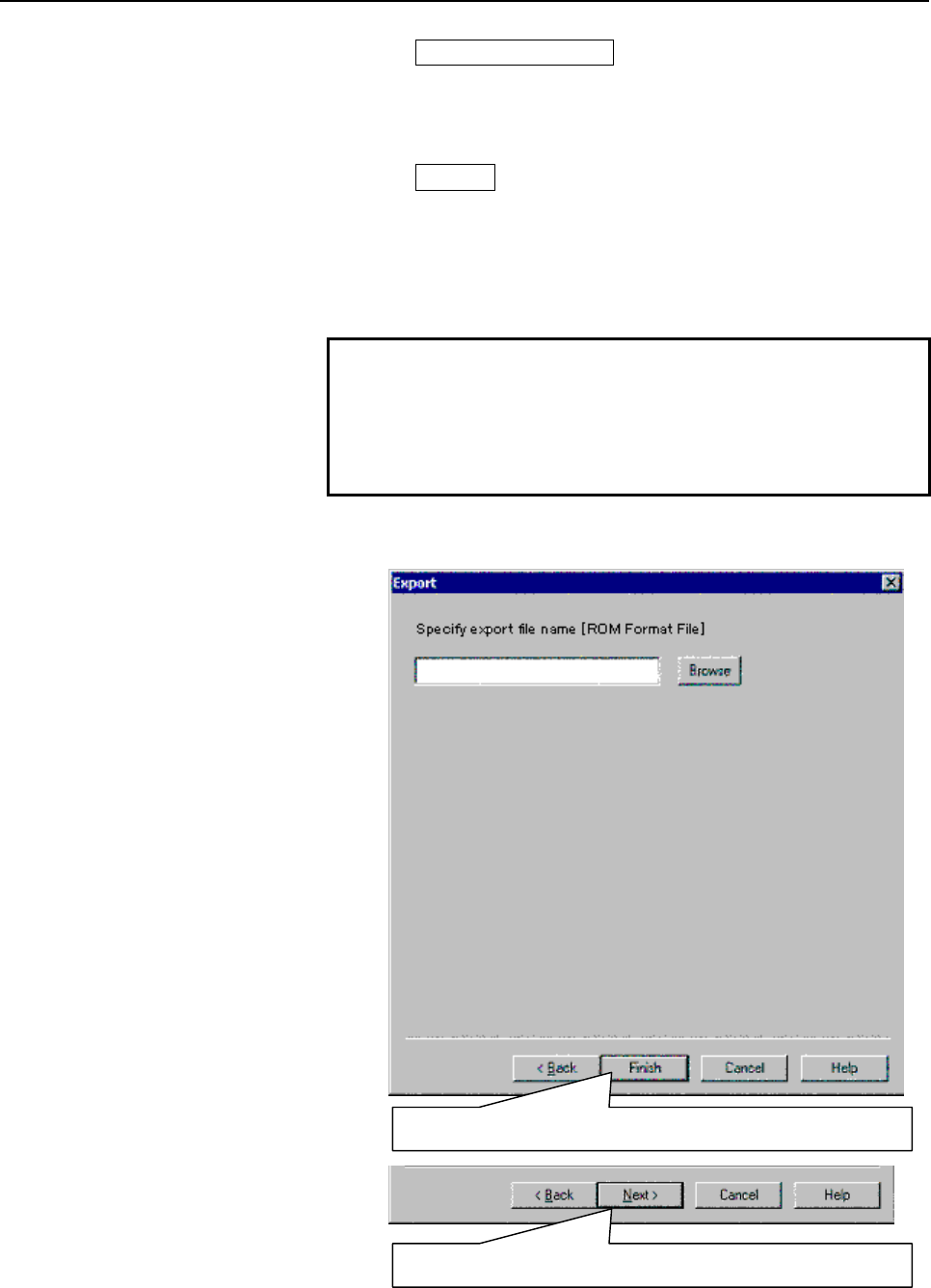

Fig. 3.11.1 (b)
Memory-card / ROM Format / Handy-file Format
FANUC LADDER-III(*.LAD) File / User File
Previous page
Next page
