9.1.3.1 Multiple used check of the functional instruction parameter
number
When the <Update> button on the online editing screen is pushed,
multiple use of the following functional instruction parameter number
is checked.
Supported instructions
Multiple use of the following functional instruction parameter number
is checked.
SUB3(TMR)
SUB24(TMRB)
SUB77(TMRBF)
SUB5(CTR)
SUB56(CTRB)
SUB57(DIFU)
SUB58(DIFD)
Operation
1 Push the <Update> button on online editing screen.
2 The following screen will be displayed if multiple use of the
parameter number of functional instruction was found.

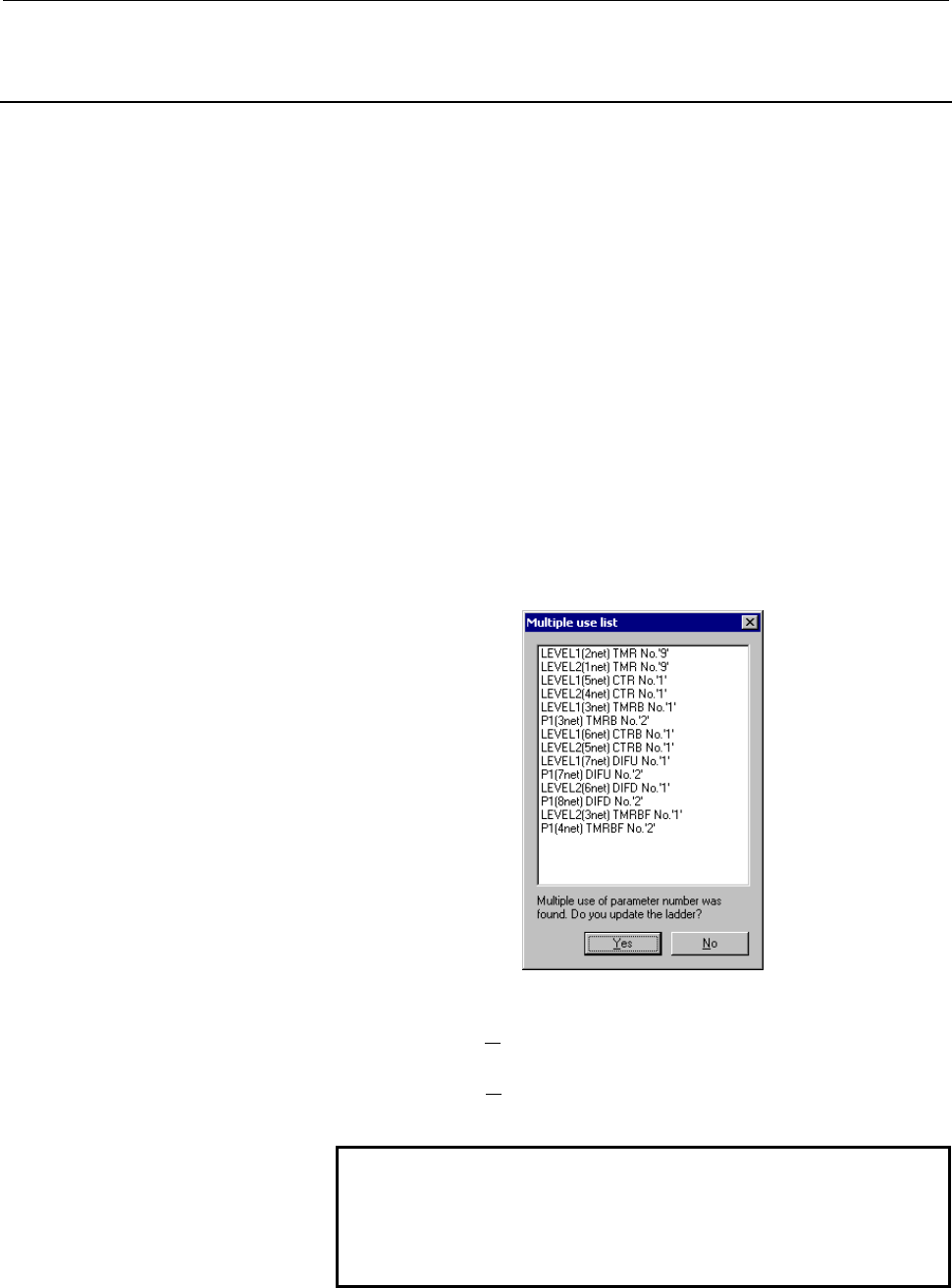

Fig. 9.1.3.1 (a)
• Push the <Y
es> button if you want to update the ladder of
multiple use of parameter number.
• Push the <N
o> button if you want to modify the ladder of
multiple use of parameter number.
NOTE
1 Multiple use of the parameter number of TMRB and
TMRBF instruction is checked.
2 Multiple use of the parameter number of DIFU and
DIFD instruction is checked.
