Open CNC (Ladder Editing Package, Windows) Operators manual Page 38

Operators manual
1.SETUP B-63484EN/05
- 10 -
3 Confirming uninstallation

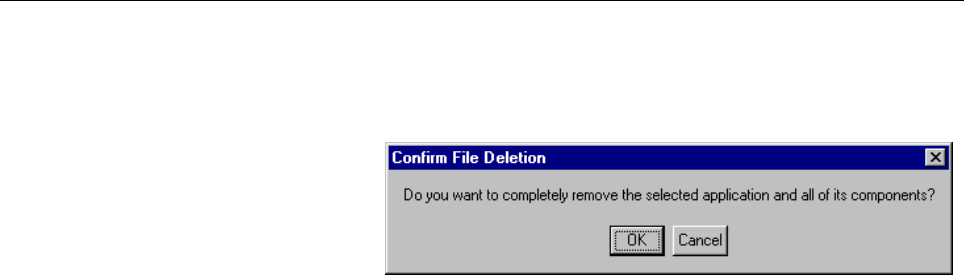

3-1 A dialog box appears, asking whether you really want to
uninstall the program. Select <OK>.
Fig. 1.2.2 (b)
4 Executing uninstallation
The installed files, folders, and start menu items are deleted, and
the original system settings are restored.
Uninstallation then ends.
The uninstaller sometimes cannot uninstall all the files and
folders of Ladder Editing Package (Windows), such that some
files or folders may remain after uninstallation. Should this occur,
restart the system, and then delete the remaining files/folders by
using My Computer or Explorer.
