10.3.9 Input of Jump Label by Symbolic Name

This function enables the following programming.

• You can input directly a symbol as the label of JMPB/ JMPC/

LBL instructions without assignment of specific label number.

• If you input the undefined symbol as the label on the offline

editing screen, the new symbol data definition screen is opened

automatically and the program name, L address and LABEL type

are input automatically.

• When you compile the ladder program, appropriate L address is

assigned automatically if setting of specific L address is not done

for the symbol.

Ladder Edit

1 Input the label of the JMPB/JMPC/LBL instructions.

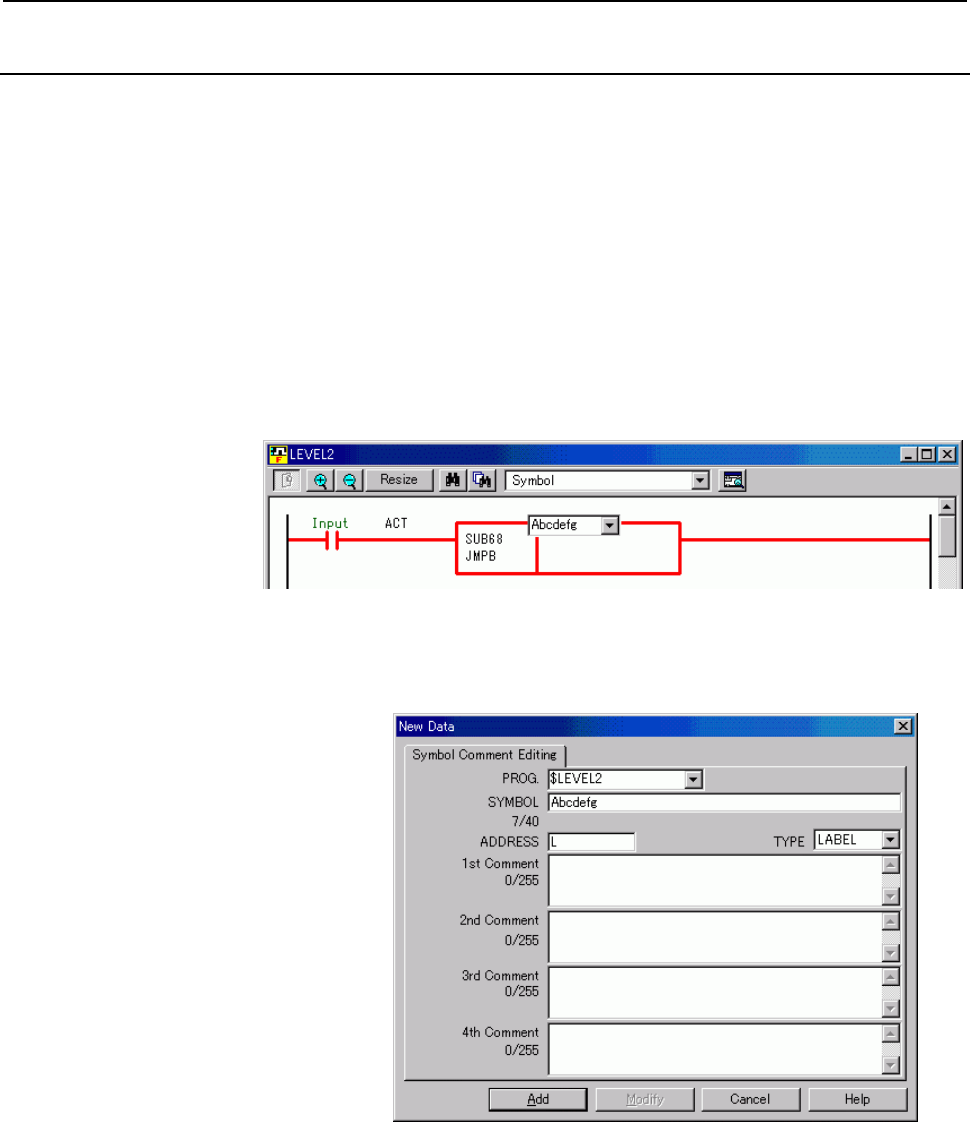

Fig. 10.3.9 (a)

2 If you input the label as the undefined symbol, the following new

data definition screen appears. If you input the defined symbol,

the new data definition screen does not appear.

Fig. 10.3.9 (b)
