Open CNC (Ladder Editing Package, Windows) Operators manual Page 329

Operators manual
B-63484EN/05 9.DIAGNOSIS
- 301 -
• PROTECT PMC PARAM (PMC-SB7: K902.7, PMC-SA1:
K19.7)
Not checked : Enables the modification and reading of PMC
parameters.
Checked : Disables the modification and reading of PMC
parameters.
• IO GROUP SELECTION (PMC-SB7: K906.1)
Not checked : Hides the I/O link group selection screen.
Checked : Displays the I/O link group selection screen.
CAUTION
The [Display] button can be used if the following
conditions are satisfied:
• The selectable I/O link assignment screen on
the system parameter screen is enabled.
• IO GROUP SELECTION (K906.1=1) is checked
and PROGRAMMABLE ENABLE (K900.1=1) is
also checked.

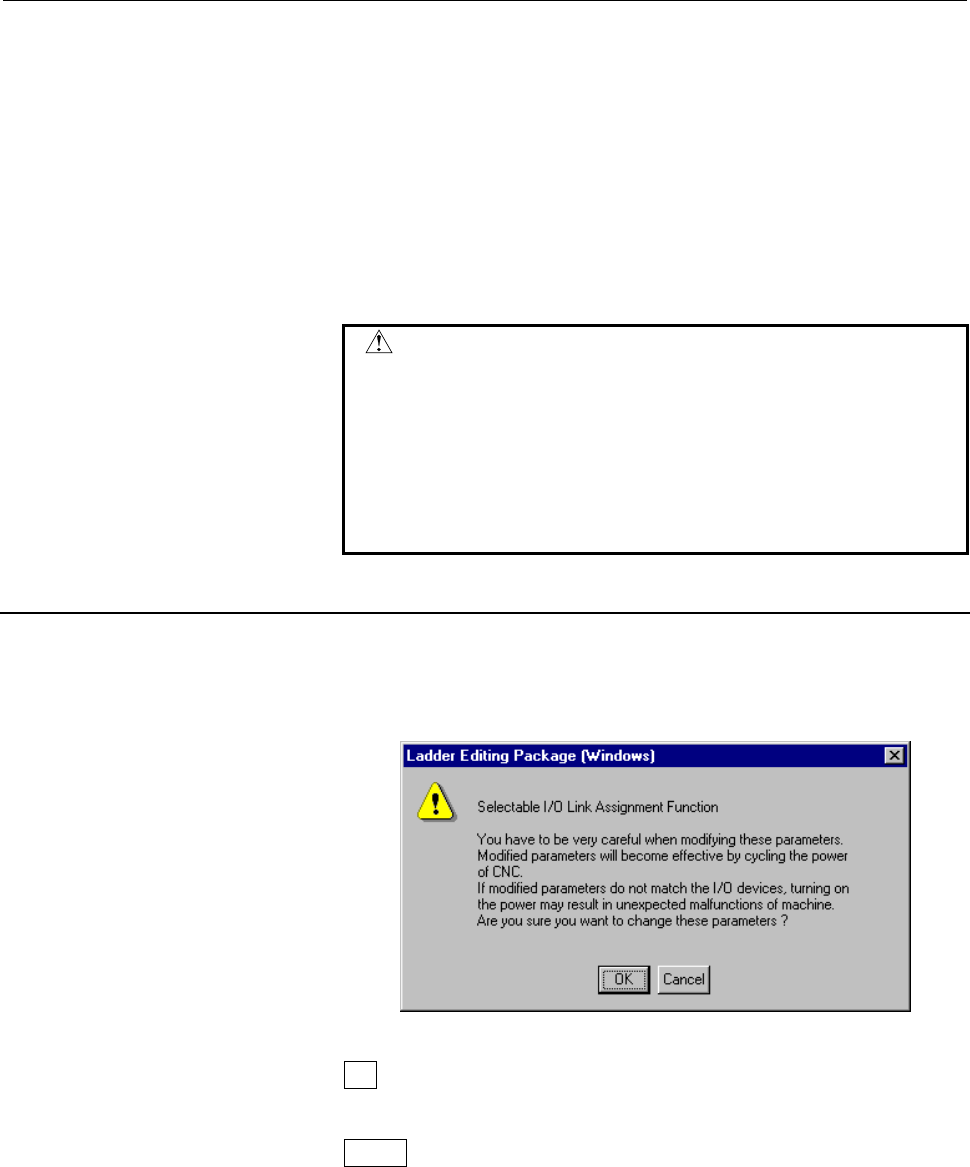

9.3.6.4 Warning message
When you click the [Display] button to call the setting parameter
screen of the selectable I/O link assignment function, the following
warning screen appears first to warn you against the modification of
parameters.
Fig. 9.3.6.4
OK
Displays the selectable I/O link assignment function.
Cancel
Returns you to the SETTING screen for PMC setting parameters.
