3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05

- 26 -

3.1.4 PMC Type (Step Sequence and I/O Link Expansion) Setting

When the PMC type cannot be identified during start of

communication (because the PCM sequence program does not exist or

is corrupted), the PMC type of a new sequence program can be set.

Procedure

1 If the PMC type cannot be identified during start of

communication, the [PMC Type Setting] dialog box

automatically appears. Use this dialog box to enable or disable

[LEVEL3 Program Using], [Step sequence], and [I/O Link

expansion].

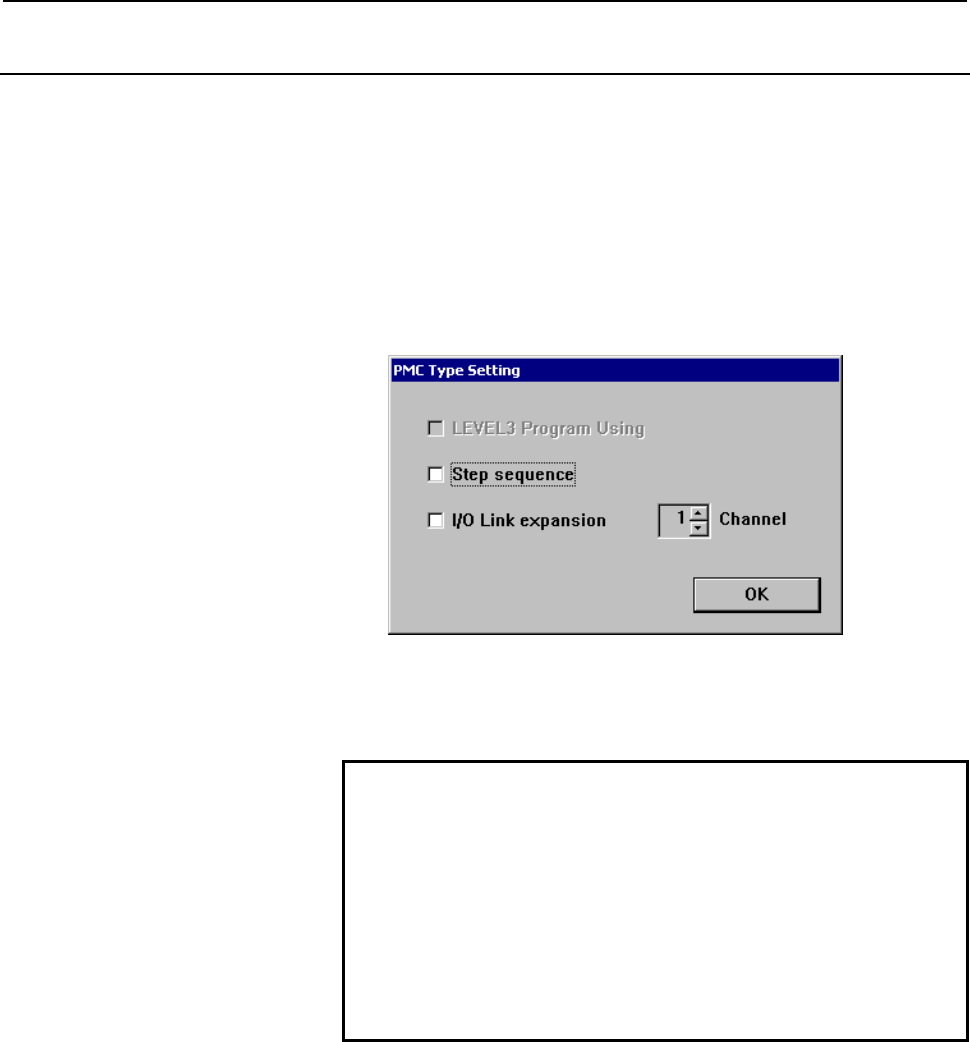

Fig. 3.1.4

2 Click the <OK> button to confirm the PMC type of a new

sequence program to be created.

NOTE

1 Addition or deletion can be performed for a level 3

program that has been newly created (only for level

3-enable models).

2 While another sequence program is being edited,

the system asks if you want to create a new

program, before displaying the [PMC Type Setting]

dialog box. After determining whether there is no

need to save the editing program, create a new

program.
