FANUC OPEN CNC LADDER EDITING

PACKAGE (Windows) SUPPLEMENTARY

OPERATOR’S MANUAL

01 05/01/14 First issue B-63484EN/05-1

EDIT

DATE

DESIG.

DESCRIPTION

4/60

TITLE

DRAW.NO.

SHEET

CUST.

3. Copy/paste of ladder diagram between different PMC types

Ladder diagram can be copied/pasted between different PMC types

3.3.24.7 Copy/Paste function of ladder

When two or more Ladder Editing Package(Windows) programs are started,

the ladder of another model can be edited simultaneously, and Ladder

diagram can be copied/pasted between different PMC types.

As a result, the efficiency of the edit operation can be raised by pasting a part

of the ladder with symbol/comment used in an existing ladder.

Supported PMC models

Supported

All

Procedure

1. Select net(s) which should be copied by drag operation.

2. Move the mouse pointer in the selected area and click a right button.

Then, click [Copy] in the context menu.

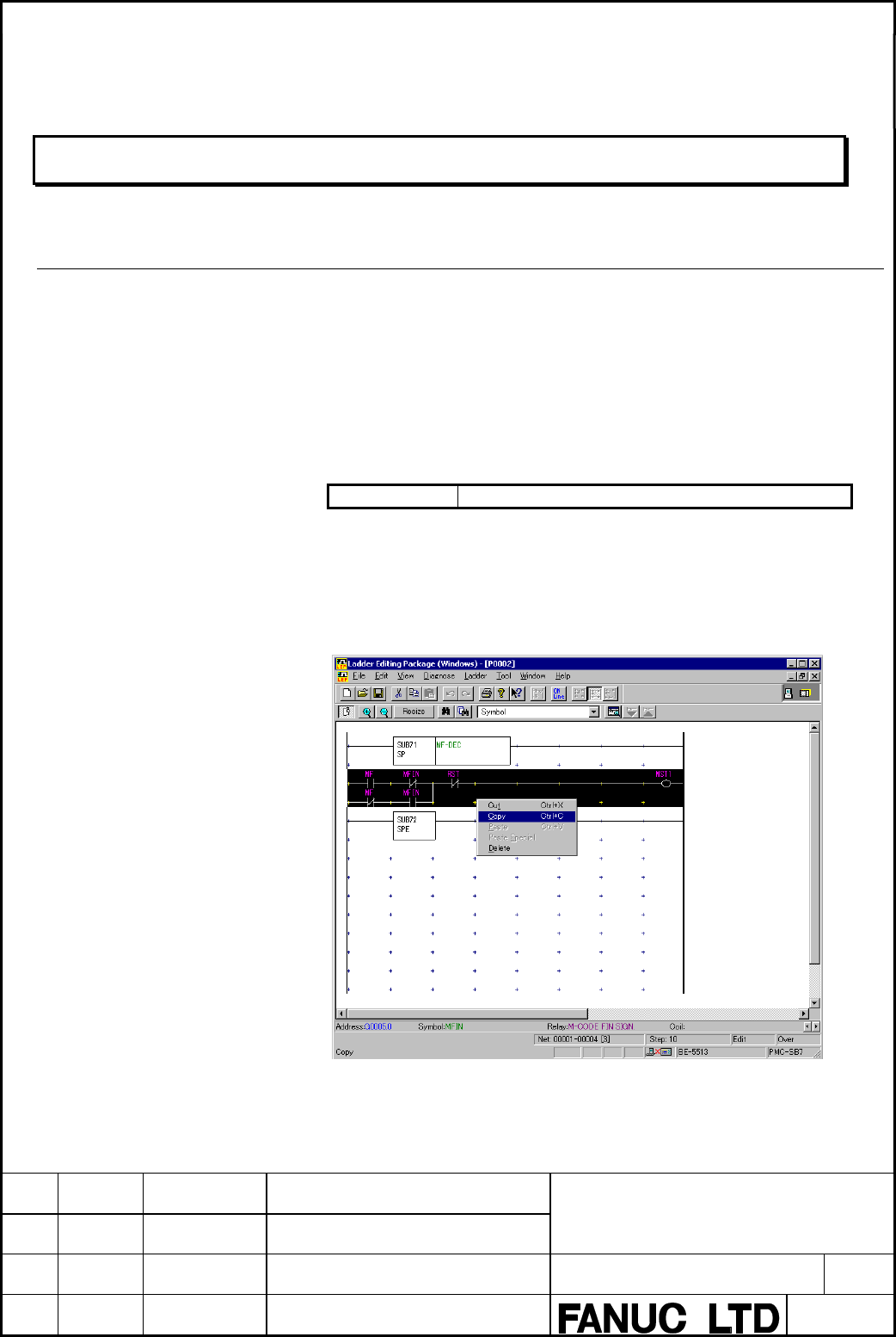

Fig. 3.3.24.7(a)

Insert after “3.3.24 .6 Entering and deleting vertical lines“
