FANUC OPEN CNC LADDER EDITING

PACKAGE (Windows) SUPPLEMENTARY

OPERATOR’S MANUAL

01 05/03/29 First issue B-63484EN/05-2

EDIT

DATE

DESIG.

DESCRIPTION

18/23

TITLE

DRAW.NO.

SHEET

CUST.

4.2. Converts to the External Symbol File

E.4 Zero suppression of PMC address

The external symbol file is output by the form that do not add "0" to the

PMC address.

Procedure

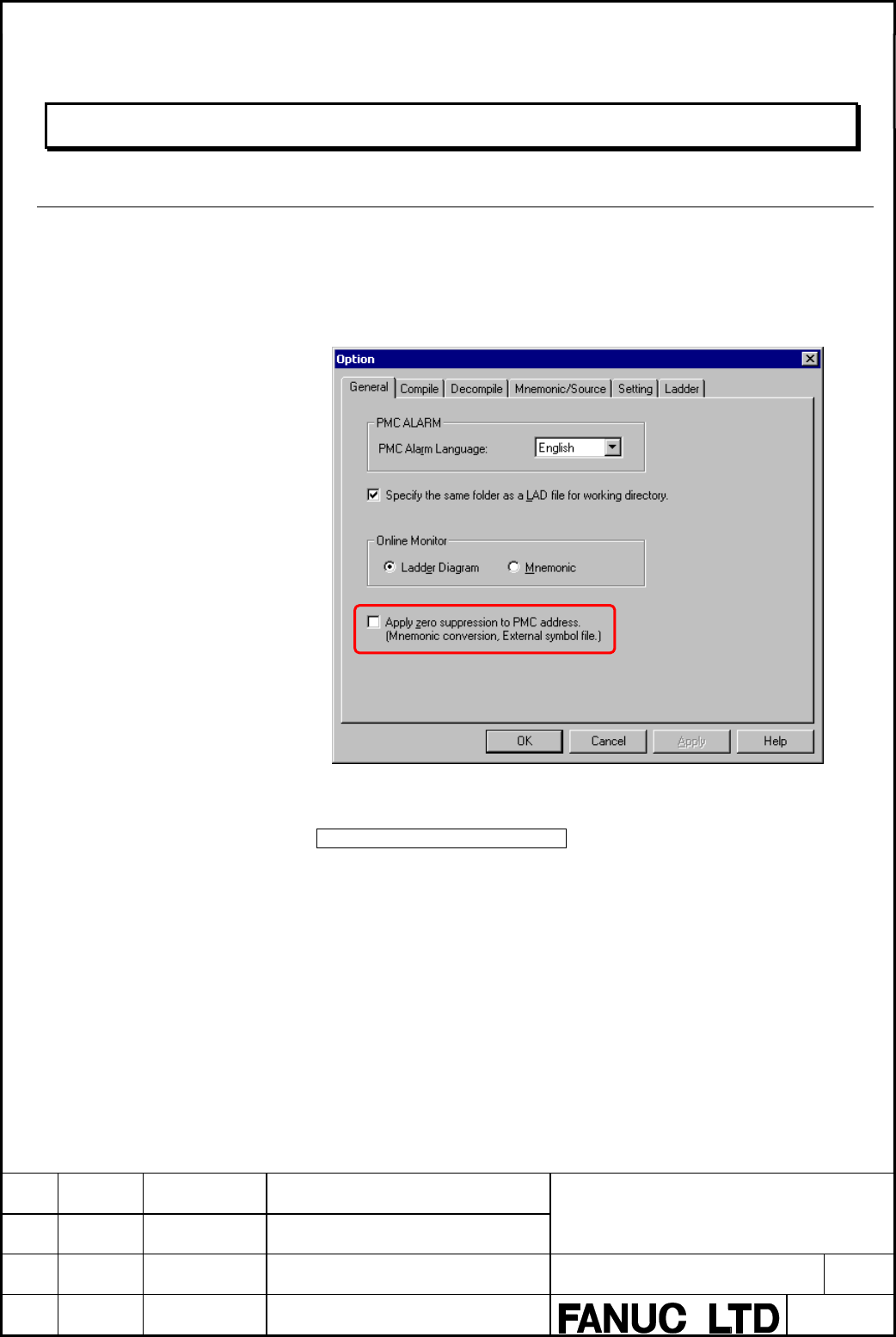

Select [Tool]-[Option...]. Then, the [Option] dialog appears.

Fig. E.4(a)

Apply zero suppression to PMC address

No check

(Default)

When the mnemonic conversion and the external symbol file is output,

the output file is a form like "R0000.0" with "0" to the PMC address.

Check

When the mnemonic conversion and the external symbol file is output,

the output file is a form like "R0.0" without "0" to the PMC address.

Add to the end of "E.3 COMPATIBILITY OF THE EXTERNAL SYMBOL FILE".
