B-63484EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 103 -

3.3.27.2 The example of an output file

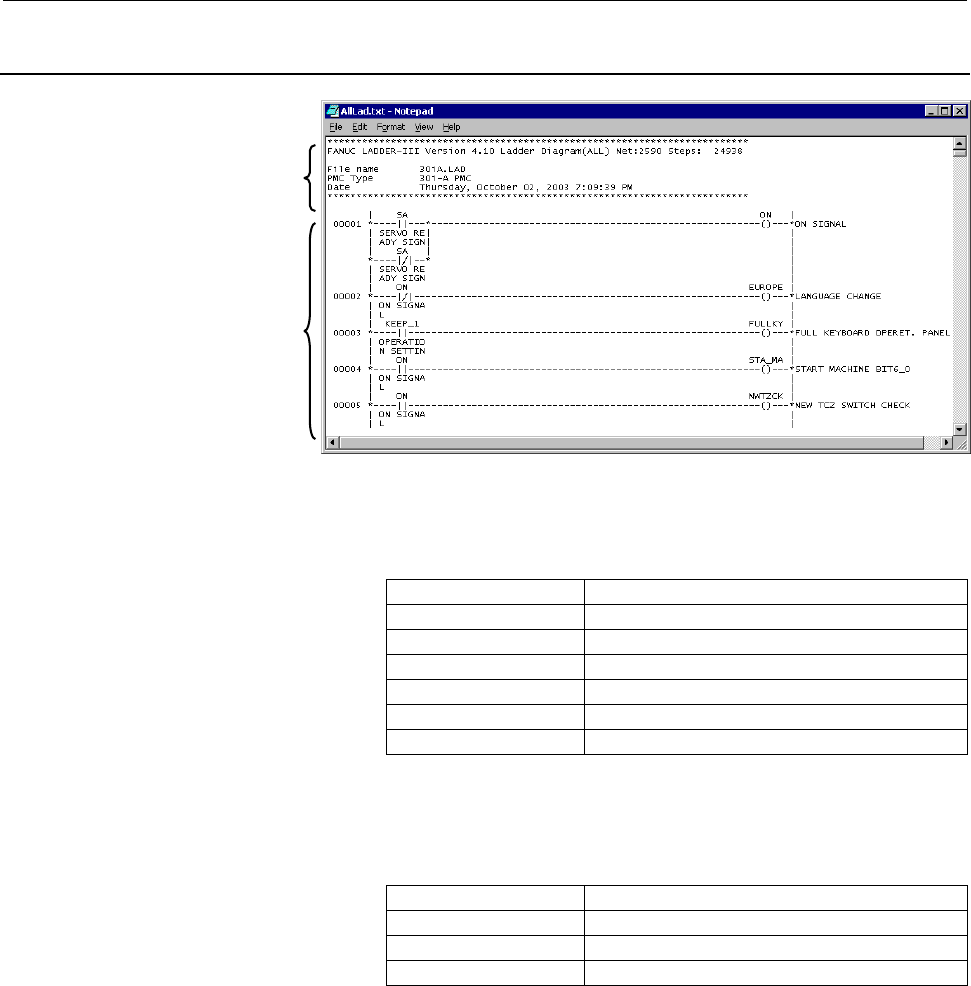

Fig. 3.5.27.2

Header information

Header information changes according to the kind of outputted

program.

Program Title

All Ladder Diagram(ALL)

LEVEL1 Ladder Diagram(LEVEL1)

Sup-program Ladder Diagram(P0001)

Search result list Ladder Diagram Search result list(*)

Collective Display Ladder Diagram Collective Display(*)

Duplicate Coil Duplicate Coil List

• In the Search result list and the Collective Display, the

number of nets and the number of steps are not outputted.

• * : The Search condition and the condition name of

Collective Display are displayed.

Item Contents

File name LAD file name

PMC Type The model of PMC

Date Date the file was created.

* Date is dependent on "Regional options".

Heade

information

Ladder

ram
