Open CNC (Ladder Editing Package, Windows) Operators manual Page 449

Operators manual
B-63484EN/05 APPENDIX D.MULTI-LANGUAGE PMC MESSAGE CREATION TOOL
- 421 -

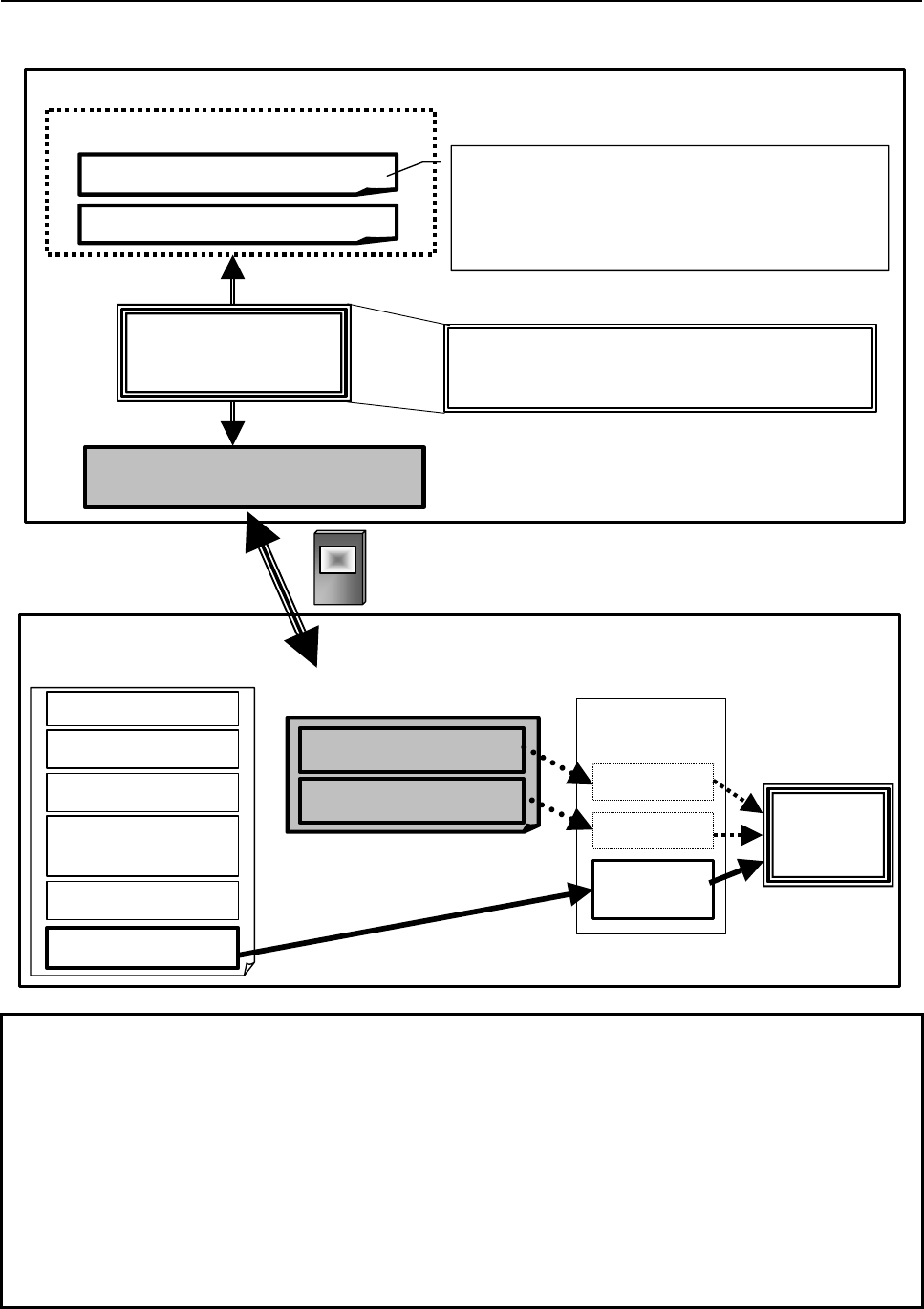

Overview
CNC
Personal computer
System parameter
Multi-language PMC message file
(
Memor
y
card format file
)
German message
Japanese message
Multi-language message source files
German message (Text file)
Japanese message (Text file)
In the encoding of a text file, both ANSI and
Unicode (UTF-16) are supported.
If the encoding of a text file is Unicode(UTF-16),
european special character can be edited
directly.
Message
display
screen
CNC display
language
PMC sequence program
(Memory card format file)
Title data
IO module data
Symbol/Comment
data
Ladder data
Message data
English
(
Other
)
German
Japanese
cd \pmc_message
fpmcmsg germsg.txt + jpnmsg.txt /o=msg_mcard
Command prompt
PCM/CIA card
Multi-language PMC message file
(
Memor
y
card format file
)
Multi-language
PMC Message
Creation TOOL
NOTE
1 Multi-language PMC message file can be loaded from CNC boot menu or PMC I/O
screen through PCM/CIA card.
2 Multi-language PMC message can be modified without modifying the PMC
sequence program.
3 When the alarm number of the same A address in PMC sequence program and
multi-language PMC message file is not corresponding, alarm number of PMC
sequence program is displayed
4 In message data of PMC sequence program, please prepare the message number
whenever you should display the message number. And please specify the same
message number in multi-language PMC message file.
