6. [Performing automatic address assignment]
This item appears when the PMC model is the extended function and convert data is
Symbol&Comment.
Check : The address of the symbol is assigned automatically. Beforehand, you need to specify
the assignment address range on the system parameter screen.
(Refer to Fig 2.)
7. [Program]
This is effective when convert data is ladder, specify the ladder program.
8. [Data kind Separation] or [Program Separation] check box follows.
Data kind separation is effective when the convert data is all.
Program separation is effective when the convert data is ladder.
Check this when you would like to output the files divided by the kind of data or unit of
Programs.
As for the detail, please refer to table 1.1(c).

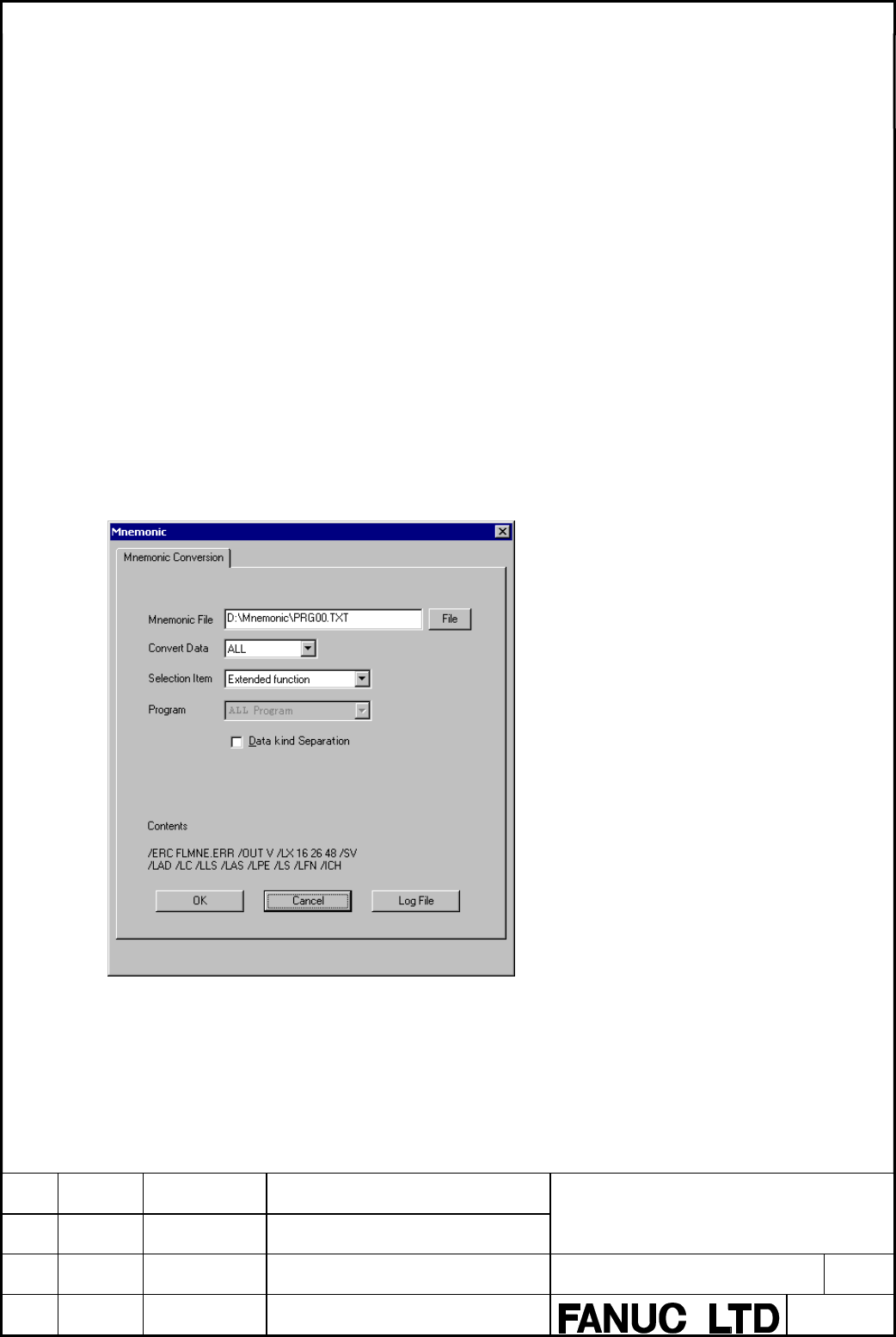

Fig 6.1(c) (Data kind separation)
