Open CNC (Ladder Editing Package, Windows) Operators manual Page 128

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 100 -
3.3.27 Ladder Diagram is Outputted to the Text File
The ladder diagram is outputted to the text file in the form currently
displayed on the Ladder edit display. The outputted text file can be
opened by text editors, such as "notepad", or it can be printed. Also, it
can reduce the file size. The ladder diagram of the All ladder, the
Sub-program, the Search result list, the Collective display and the
Duplicate Coil can be outputted.
NOTE
1 The editing screen separated into the display and
the editing window is not supported.
2 If the programmer mode is offline, this function is
available.
3 The step sequence programs is not supported.
3.3.27.1 Procedure

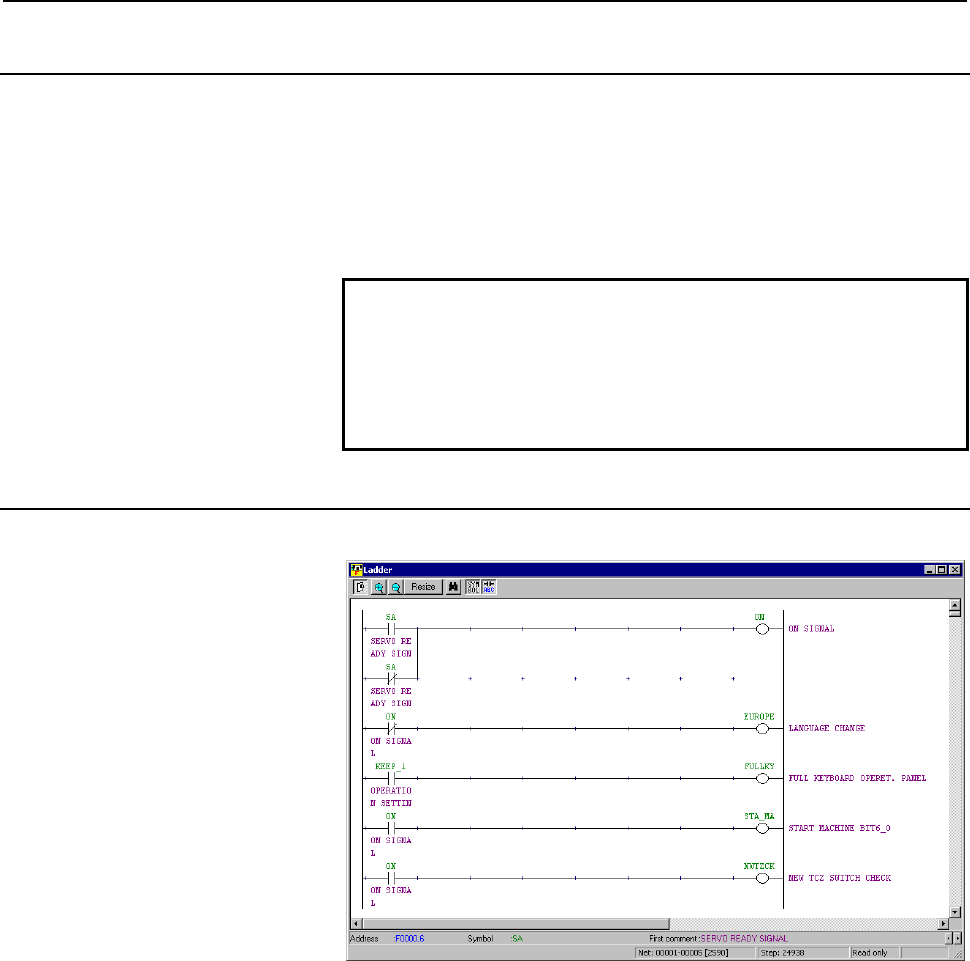

1 The Ladder program to output is displayed.
Fig. 3.5.27.1 (a)
