Open CNC (Ladder Editing Package, Windows) Operators manual Page 390

Operators manual
10.EXTENDED SYMBOL/COMMENT FUNCTION B-63484EN/05
- 362 -
10.8 COMPILATION

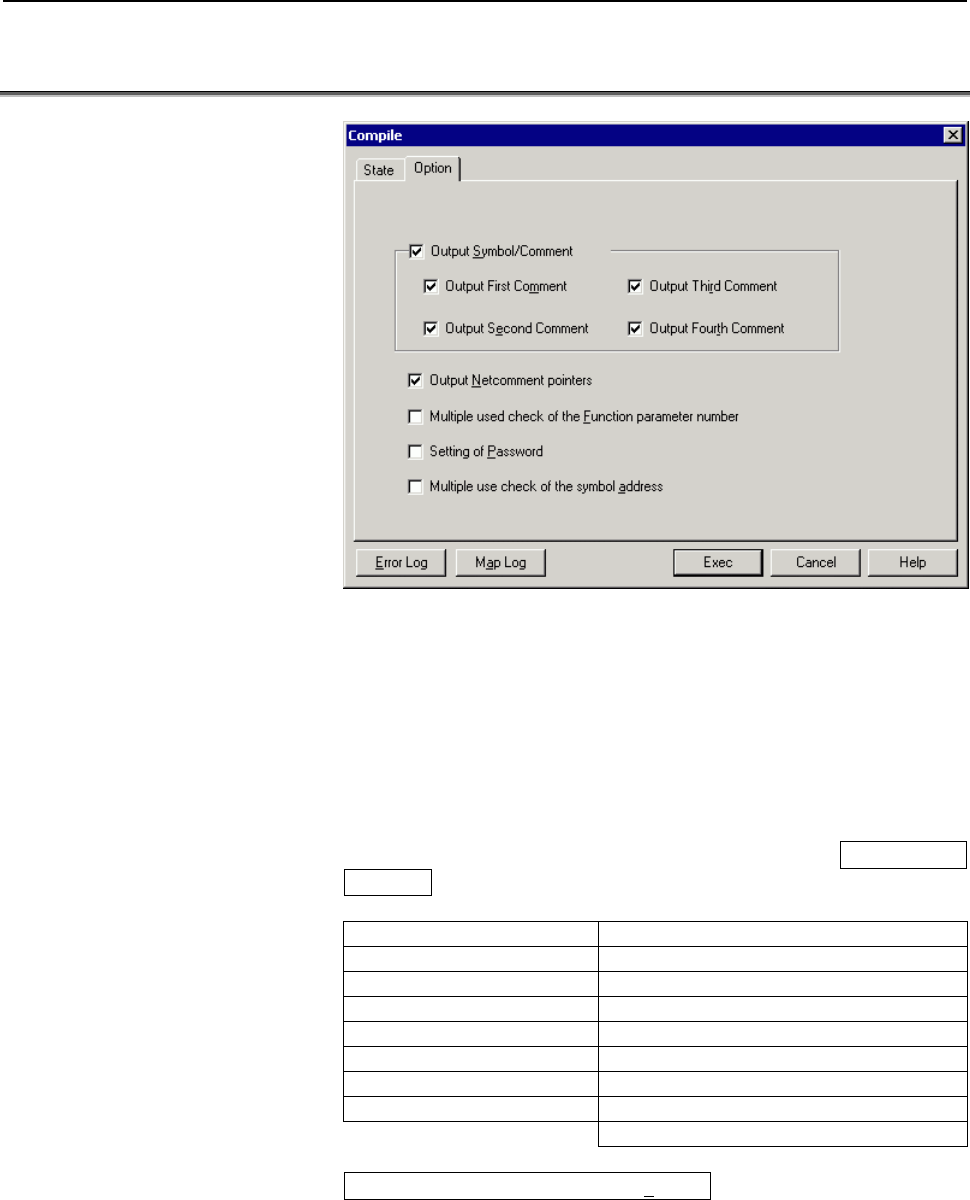

Fig. 10.8
A specification whether to output the 3rd comment and 4th comment
is added.
You can describe up to four sets of comments for each symbol data.
These sets of comments can have their attributes of language, so that
they can be switched dynamically to be displayed on the ladder screen
and so on, according to the language setting of CNC. They can also
have an attribute of a specific screen, so that they will be used in the
screen for a specific purpose.
You can define the attributes of comment sets at Language for
Comment in System Parameter.
0: English 8: Dutch
1: Japanese 9: Danish
2: German 10: Portuguese
3: French 11: Polish
4: Chinese 12: Hungarian
5: Italian 13: Swedish
6: Korean 14: Czech
7: Spanish -1: Other
100 REMARK in I/O Diagnosis screen
Multiple use check of the symbol a
ddress
Checked : It is checked that two or more symbols are defined in
one address.
Not checked : It is not checked that two or more symbols are defined
in one address.
