Open CNC (Ladder Editing Package, Windows) Operators manual Page 65

Operators manual

Page of 571

/ 571

B-63484EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 37 -

NOTE

1 To display the edit tool bar, select [View] - [Edit

ToolBar].

2 The edit tool bar can be detached from the window

to which it belongs and moved to any position on

the screen by clicking between its buttons and

dragging.

Shortcut keys

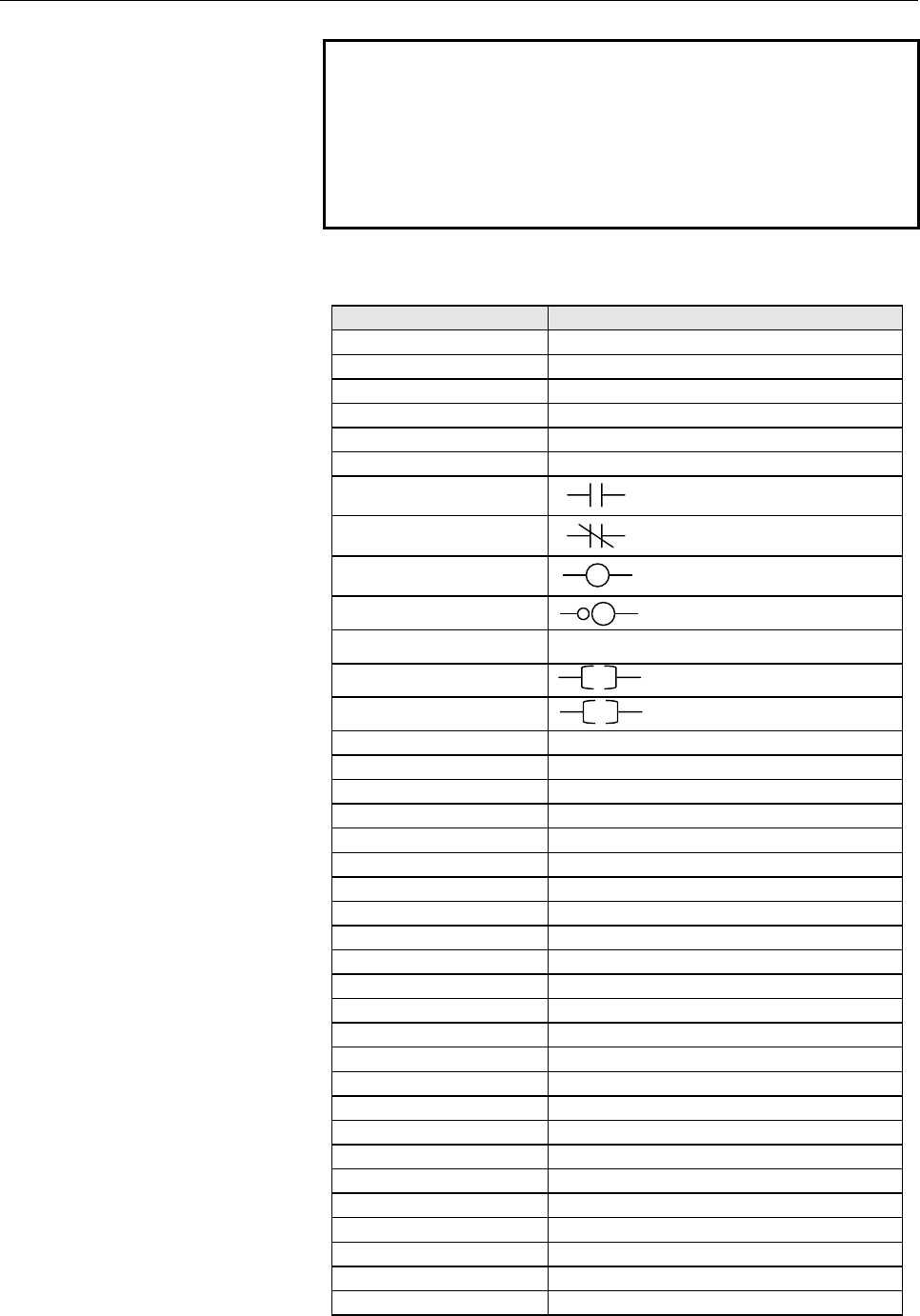

Table 3.3.3

Shortcut key Function

[F2] Down Coil Search

[Shift] + [F2] Up Coil Search

[Ctrl] + [F2] Global Search

[F3] Search next (downward)

[Shift] + [F3] Search next (upward)

[Ctrl] + [F3] Seach Address

[F4]

[Shift] + [F4]

[F5]

[Shift] + [F5]

[Ctrl] + [F5] Replace

[F6]

[Shift] + [F6]

[F7] Vertical line (Left side)

[Shift] + [F7] Vertical line (Right side)

[Ctrl] + [F7] Insert element

[F8] Horizontal line

[Shift] + [F8] Clear element (repeatable)

[Ctrl] + [F8] Insert line

[F9] Function instruction

[Shift] + [F9] Net comment

[Ctrl] + [F9] Insert Net (forward)

[Ctrl] + [F10] Insert Net (backward)

[Delete] Clear element

[Ctrl] + [A] Edit – Select all

[Ctrl] + [C] Edit – Copy

[Ctrl] + [D] Edit – Address display switch

[Ctrl] + [F] Edit – Search

[Ctrl] + [G] Edit – Jump to specified net number

[Ctrl] + [H] Edit – Replace

[Ctrl] + [R] Restore (for Online editting)

[Ctrl] + [T] Stay opened

[Ctrl] + [U] Update (for Online editting)

[Ctrl] + [V] Edit – Paste

[Ctrl] + [W] View

[Ctrl] + [Y] Redo

[Ctrl] + [Z] Undo
