B-63484EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS

- 147 -

1-2 Set the comment set number for displayed language of CNC

(For PMC model which supports the multiple comments)

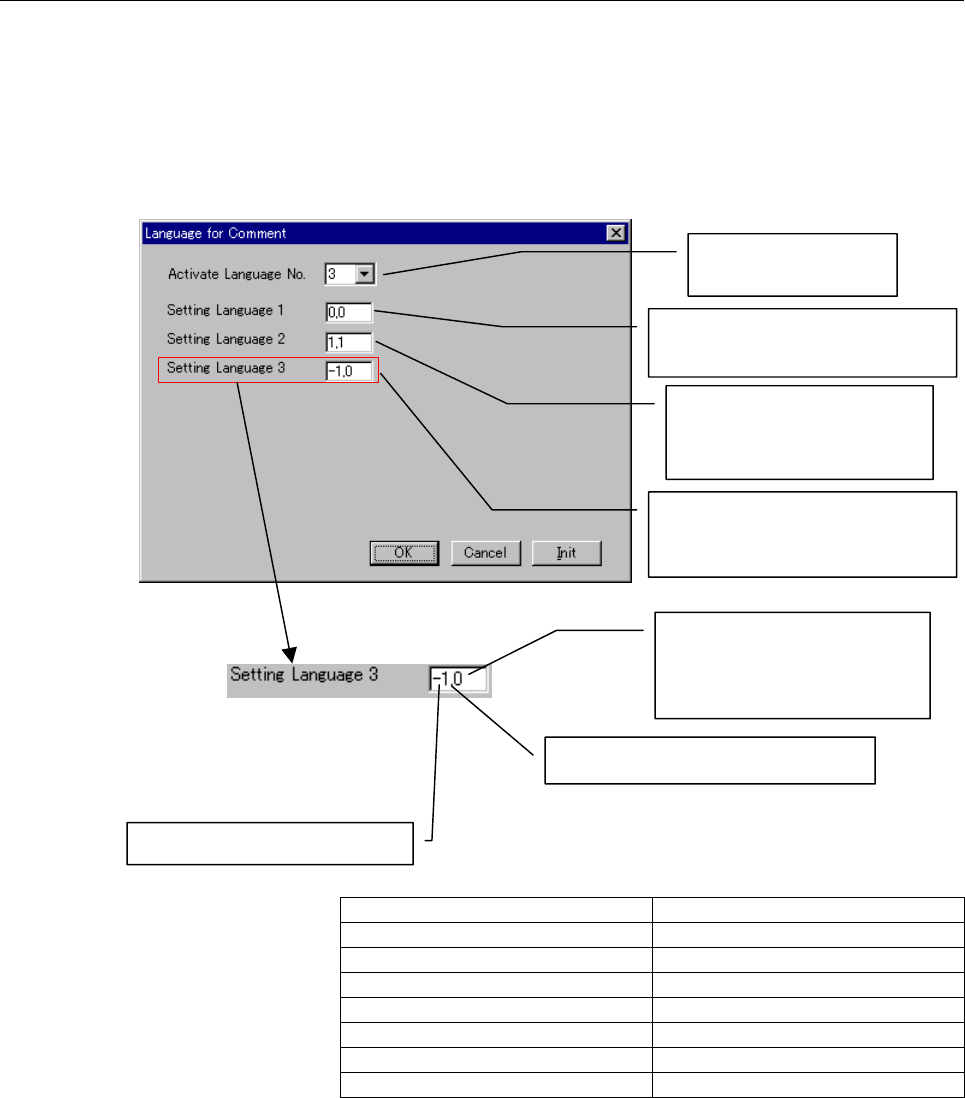

In [Language for Comment] dialog-box (<Language for

Comment> button on [Edit System Parameter] screen),

please set the comment set number for displayed language

of CNC.

CNC display language number

Comment set number

First Comment = 0

Second Comment = 1

‘,’ (COMMA) is used as a delimiter

When displayed language of CNC

is not English/Japanese, first

comment is used

When displayed language of CNC

is English, first comment is used

When displayed language of

CNC is Japanese, second

comment is used

Number of display

language (comment)

0: English 8: Dutch

1: Japanese 9: Danish

2: German 10: Portuguese

3: French 11: Polish

4: Chinese 12: Hungarian

5: Italian 13: Swedish

6: Korean 14: Czech

7: Spanish -1: Others
