Open CNC (Ladder Editing Package, Windows) Operators manual Page 389

Operators manual
B-63484EN/05 10.EXTENDED SYMBOL/COMMENT FUNCTION
- 361 -
10.7 SYSTEM PARAMETER
10.7.1 Set of Display Language for Comment
You can describe up to four sets of comments for each symbol data.
These sets of comments can have their attributes of language, so that
they can be switched dynamically to be displayed on the ladder screen
and so on, according to the language setting of CNC. They can also
have an attribute of a specific screen, so that they will be used in the
screen for a specific purpose.
You can define the attributes of comment sets at Language for
Comment in System Parameter.
Procedure
1 Double-click the <System parameter> item in the [Program List]
screen. The [Edit System Parameter] screen appears.
2 Click the L
anguage for Comment button.
CNC display language number
Comment set number
First Comment = 0
Second Comment = 1
:
‘,’ (COMMA) is used as a delimiter.
When displayed language of CNC
is not English/Japanese, first
comment is used.
When displayed language of CNC
is English, first comment is used.
When displayed language of
CNC is Japanese, second
comment is used.
Number of display
language (comment)

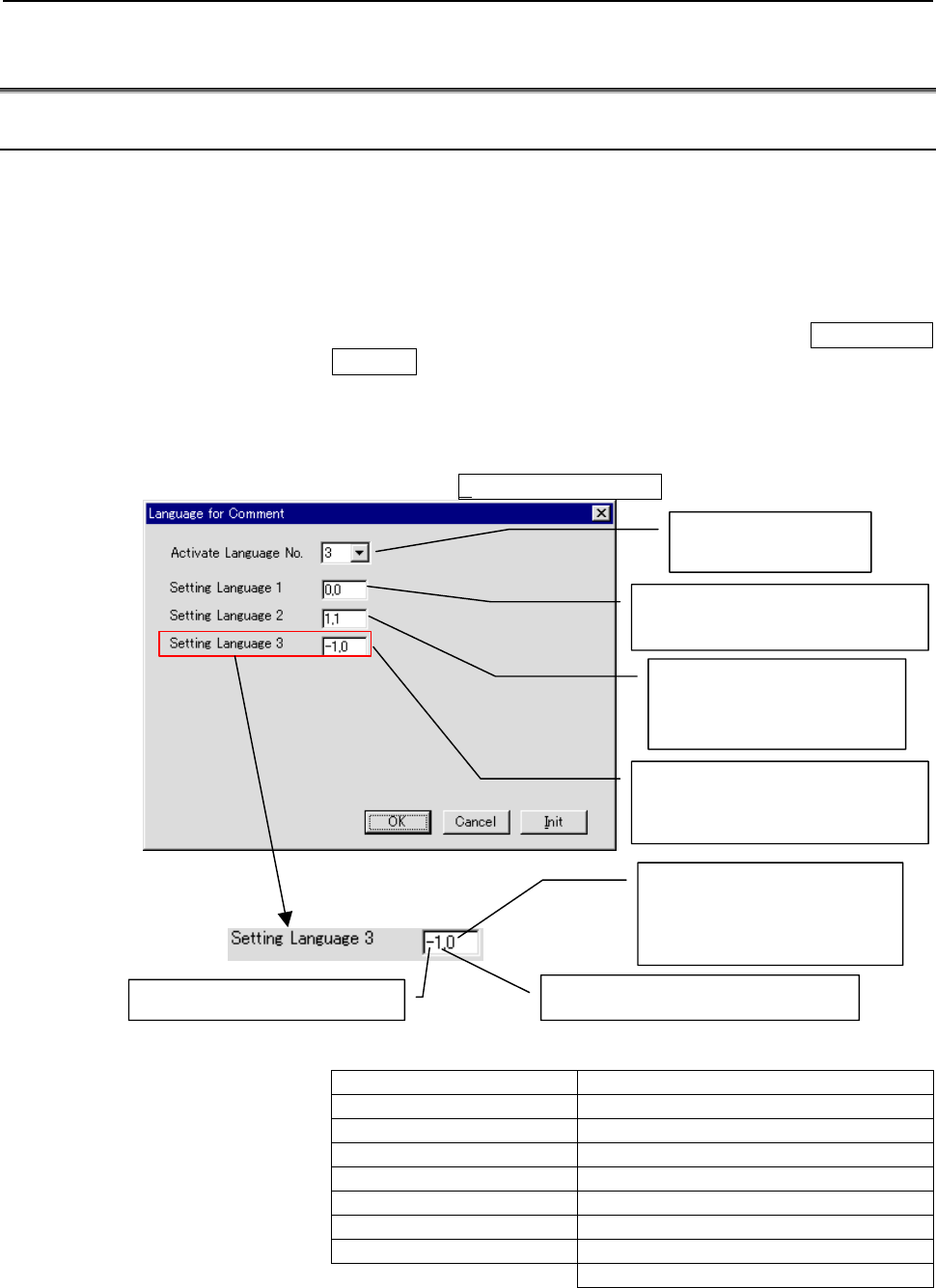

Fig. 10.7
0: English 8: Dutch
1: Japanese 9: Danish
2: German 10: Portuguese
3: French 11: Polish
4: Chinese 12: Hungarian
5: Italian 13: Swedish
6: Korean 14: Czech
7: Spanish -1: Other
100 REMARK in I/O Diagnosis screen
